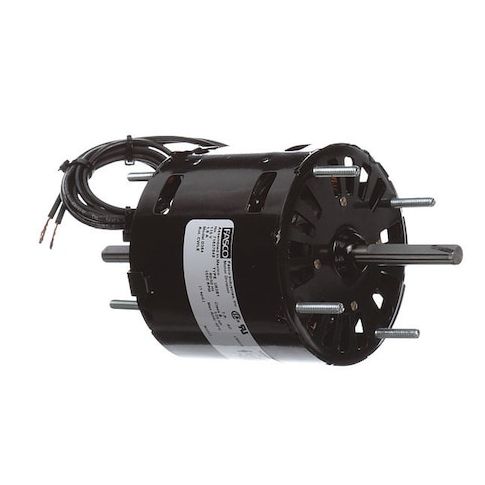

HVAC Motor, 1/25 HP, 1550 rpm, 115V, 3.3 MPN:D364
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7458857
HVAC Motor, 1/25 HP, 1550 rpm, 115V, 3.3
This 1/25 HP HVAC motor from Fasco is designed for single-phase applications, offering a reliable and efficient solution for fan and blower systems. With a nameplate RPM of 1,550, this motor provides a consistent and controlled airflow, ideal for residential and commercial HVAC installations. Its compact 3.3 frame size makes it easy to integrate into tight spaces. The motor's auto thermal protection and class B insulation ensure safe and reliable operation in ambient temperatures up to 40°C. Suitable for use in various applications, including air handling units, fan coils, and blowers, this motor provides a cost-effective and hassle-free solution for HVAC professionals.
Top product features:
- Shaded pole motor design for efficient operation
- Single phase operation for simple installation
- Output of 30 watts for energy-efficient performance
Top product applications:
- HVAC system for residential buildings
- Central air conditioning unit for small commercial spaces
- Industrial ventilation system for manufacturing facilities
Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/25 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 1.8 A Full Load Amps, 3.3 Frame, Output Watts 30 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.40
- Package Width: 3.80
- Package Height: 4.00
- Package Weight: 3.40
Product info last updated on January 16, 2026 12:16pm UTC
Category: Motors
