Condenser Fan Motor, 1/4 hp MPN:D909
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6422781

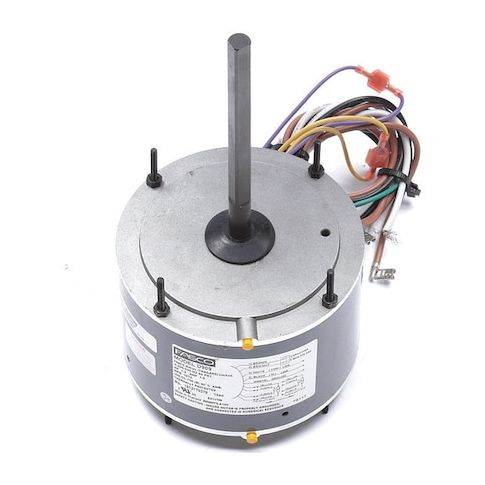

Condenser Fan Motor, 1/4 hp
This 1/4 hp condenser fan motor from Fasco is a reliable and efficient solution for a wide range of applications. Suitable for use in condenser units, air handlers, and other HVAC equipment, it operates at 1,075 RPM and 190 watts, making it ideal for continuous duty cycles. With its permanent split capacitor design and totally enclosed air-over motor enclosure, it provides excellent protection against dust and moisture. The motor is also designed for use at 208-230V AC, making it a versatile option for various electrical systems. Its compact size and lightweight design make it easy to install and maintain.
Top product features:
- Single Phase operation
- Permanent Split Capacitor motor design
- Totally Enclosed Air-Over motor enclosure
Top product applications:
- HVAC systems
- Air conditioning units
- Packaged rooftop units
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 1.8 A Full Load Amps, 48 Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
Additional Information
- Country of Origin: TH
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.80
- Package Width: 6.10
- Package Height: 6.10
- Package Weight: 11.60
Product info last updated on March 17, 2026 3:43pm UTC
Category: Motors
