Motor, 1/50-1/65-1/80 HP, 120V, CW MPN:D1134
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6096526
Motor, 1/50-1/65-1/80 HP, 120V, CW

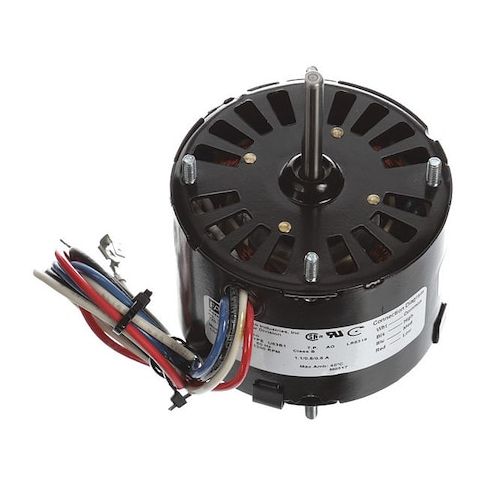

This Fasco motor is a reliable OEM replacement for various applications, offering a single-phase design with a shaded pole motor. Suitable for use in environments with a maximum ambient temperature of 40°C, it operates at 1,300 RPM with three speeds. The motor is rated for 1/30, 1/50, and 1/65 horsepower and can handle 120V AC with 1.1, 0.80, or 0.60 amps at full load. Perfect for use in commercial and industrial settings, this motor is ideal for applications such as fans, blowers, and pumps, providing efficient and quiet operation. Its compact design makes it easy to install and maintain.
Top product features:
- Single Phase Motor Design
- Shaded Pole Motor Design with 3 Speeds
- Auto Thermal Protection
Top product applications:
- Heating and Air Conditioning Units
- Fans and Blowers
- Pumps and Compressors
OEM Replacement Motor, Single Phase, Motor Design Shaded Pole, 1/30 hp, 1/50 hp, 1/65 hp HP, Nameplate RPM 1,300 RPM, No. of Speeds 3, Voltage 120V AC, 1.1/0.80/0.60 A Full Load Amps, 3.3 Frame, Output Watts 10 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 3.38
- Package Height: 3.38
- Package Weight: 1.25
Product info last updated on March 14, 2026 2:20pm UTC
Category: Motors
