HVAC Motor, 44 Frame, 3/8 in Shaft Dia. MPN:D485

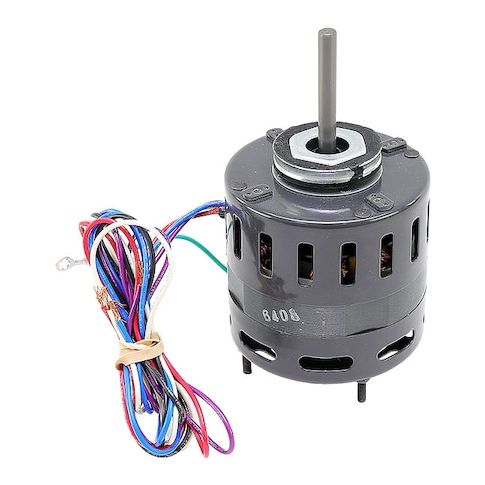

HVAC Motor, 44 Frame, 3/8 in Shaft Dia.
This Fasco 44 frame HVAC motor is a reliable and efficient solution for refrigeration applications. With a single-phase, shaded pole design and 1/20 horsepower output, it's ideal for low-power requirements. The motor operates at 1,500 RPM and is compatible with 115/208-230V AC power. Its compact size and open air over design make it a great fit for space-constrained areas. The motor's auto thermal protection and Class A insulation ensure safe and reliable operation in temperatures up to 40 degrees C. Suitable for applications such as small refrigeration units, ice makers, and cold storage equipment, this motor provides a cost-effective and efficient solution.
Top product features:
- Single Phase design for easy installation and compatibility with various applications
- Shaded Pole motor design for efficient and reliable operation
- Auto thermal protection for safe and prolonged motor life
Top product applications:
- HVAC systems
- Refrigeration units
- Commercial refrigeration equipment
Refrigeration Motor, Single Phase, Motor Design Shaded Pole, 1/20 hp HP, Nameplate RPM 1,500 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 2.2/1.1 A Full Load Amps, 4.4 Frame, Output Watts 40 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring, Stud
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.38
- Package Width: 4.38
- Package Height: 10.00
- Package Weight: 5.80
Product info last updated on March 3, 2026 6:57am UTC
Category: Motors
