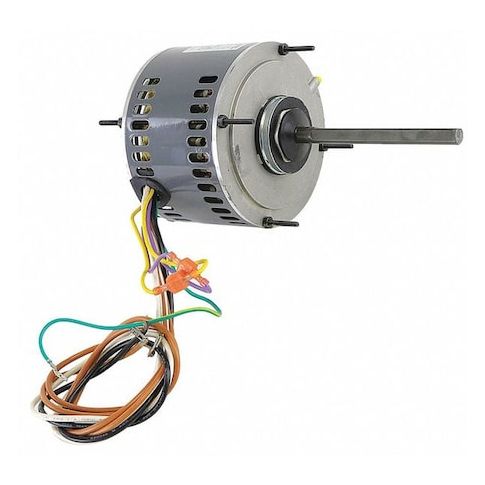

Motor, 208/230V AC, Single, 1/4 hp MPN:D783
Motor, 208/230V AC, Single, 1/4 hp
This 1/4 hp, single-phase condenser fan motor is designed for a wide range of applications, including residential and commercial HVAC systems. Its permanent split capacitor design provides efficient operation and reliability. With a nameplate RPM of 1,625 and a voltage range of 208-230V AC, this motor is suitable for use in various environments. Its open drip-proof enclosure and continuous duty cycle make it a durable option for demanding applications. Suitable for use in spaces with a maximum ambient temperature of 40 degrees C, this motor is a reliable choice for heating and cooling systems.
Top product features:
- The motor operates at a single speed of 1,625 RPM.
- The motor is designed with a permanent split capacitor to provide efficient operation.
- The motor is protected against overheating with automatic thermal protection.
Top product applications:
- HVAC systems
- Air conditioning units
- Refrigeration systems
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 1.58 A, 48 Frame, Usable @ 208V Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Stud, Motor Frame Material Steel
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.70
- Package Width: 6.00
- Package Height: 6.00
- Package Weight: 12.30
Product info last updated on January 23, 2026 5:43am UTC
Category: HVACR and Appliance Controls
