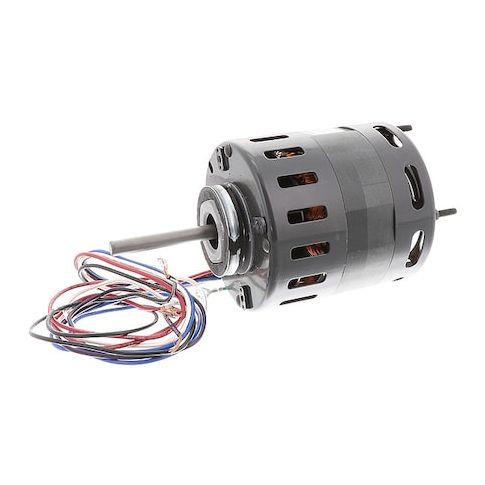

HVAC Motor, 44 Frame, 3/8 in Shaft Dia. MPN:D481
HVAC Motor, 44 Frame, 3/8 in Shaft Dia.
This 1/10 hp single-phase HVAC motor is designed for shaded pole operation, ideal for refrigeration applications. Its compact 44 frame size and 3/8 inch shaft diameter make it suitable for a variety of installations. The motor operates at 1,550 RPM and is rated for 115/208-230V AC. Its open air over design and resilient ring mounting provide excellent cooling and vibration resistance. The motor is also equipped with automatic thermal protection and a service factor of 1. Suitable for use in applications such as walk-in coolers, reach-in freezers, and ice machines, this motor offers reliable and efficient operation in a compact package.
Top product features:
- Single Phase Operation
- Shaded Pole Motor Design
- Auto Thermal Protection
Top product applications:
- HVAC equipment
- Refrigeration systems
- Air conditioning units
Refrigeration Motor, Single Phase, Motor Design Shaded Pole, 1/10 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 4.5/2.2 A Full Load Amps, 4.4 Frame, Output Watts 70 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring, Stud
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.38
- Package Width: 4.38
- Package Height: 10.00
- Package Weight: 7.60
Product info last updated on January 31, 2026 6:37am UTC
Category: Motors
