Angular Contact Ball Bearing, 4946 lb. MPN:3205-BD-XL-2Z-TVH-C3
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8798264

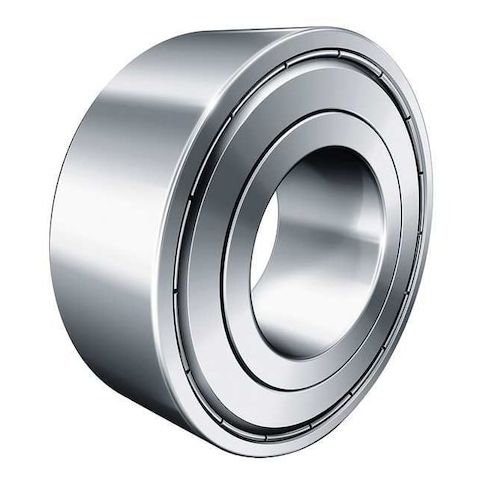

Angular Contact Ball Bearing, 4946 lb.
The Fag Bearings 3205/5205 Angular Contact Ball Bearing is a high-performance bearing designed for demanding applications. With a contact angle of 30 degrees and a maximum speed of 14,300 RPM, it excels in high-speed, high-load environments. Its double shielded design and non-contact seal ensure long-lasting protection against contamination and friction. Suitable for use in industrial machinery, automotive components, and aerospace equipment, this bearing offers improved efficiency, reduced maintenance, and increased lifespan. Its compact size and lightweight design make it an ideal choice for space-constrained applications, while its robust construction ensures reliable performance in extreme temperatures (-20 to 120°C).
Top product features:
- Double Shielded design for improved protection from contaminants and debris
- 30 Degree contact angle for increased load-carrying capacity and precision
- GA14 lubricant for reduced friction and improved bearing life
Top product applications:
- High-speed machinery
- Industrial gearboxes
- Aerospace applications
Angular Contact Ball Bearing, Bearing Industry Number 3205/5205, Bore Diameter 25 mm, Cage Material PA66, Closure Double Shielded, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Lubricant Material GA14 Lubricant, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 14,300 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 52 mm, Overall Width 20.6 mm, Ring Material Alloy Steel, Seal Type Non-Contact
Additional Information
- Country of Origin: BR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 2.50
- Package Height: 0.99
- Package Weight: 0.45
Product info last updated on April 18, 2026 6:39pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
