Angular Contact Ball Bearing, 3822 lb. MPN:3302-BD-XL-2HRS-TVH
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8798072

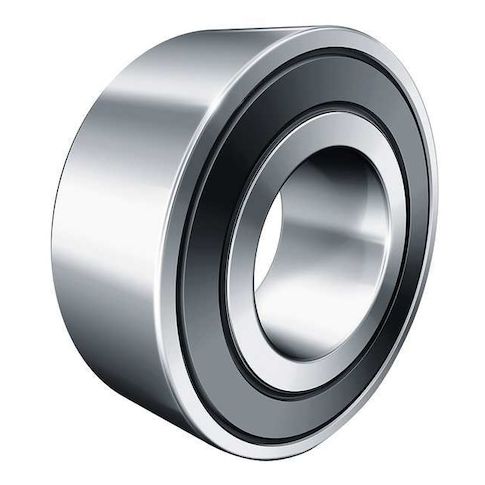

Angular Contact Ball Bearing, 3822 lb.
This Fag Bearings Angular Contact Ball Bearing is designed for high-speed applications where precise positioning and smooth operation are critical. With a contact angle of 30 degrees and a maximum speed of 18,400 RPM, it's ideal for use in gearboxes, pumps, and other machinery that require high torque and stiffness. The double-sealed design provides long-lasting protection against dust and moisture, while the alloy steel construction offers excellent strength and durability. Suitable for use in temperatures ranging from -20 to 100 degrees C, this bearing is perfect for applications in the aerospace, automotive, and industrial markets.
Top product features:
- Double sealed to prevent contamination and maintain lubrication
- Cage material PA66 for durability and resistance to wear
- Contact angle of 30 degrees for high precision and smooth operation
Top product applications:
- High-precision machinery and equipment
- Automotive and industrial gearboxes
- Aerospace and defense applications
Angular Contact Ball Bearing, Bearing Industry Number 3302/5302, Bore Diameter 15 mm, Cage Material PA66, Closure Double Sealed, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Lubricant Material GA14 Lubricant, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 18,400 RPM, Maximum Temperature 100 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 42 mm, Overall Width 19 mm, Ring Material Alloy Steel, Seal Type Contact
Additional Information
- Country of Origin: IN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.02
- Package Width: 2.02
- Package Height: 0.91
- Package Weight: 0.32
Product info last updated on April 19, 2026 12:30pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
