Angular Contact Ball Bearing, 8900 rpm MPN:3208-BD-XL-2HRS-TVH-C3
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8797993

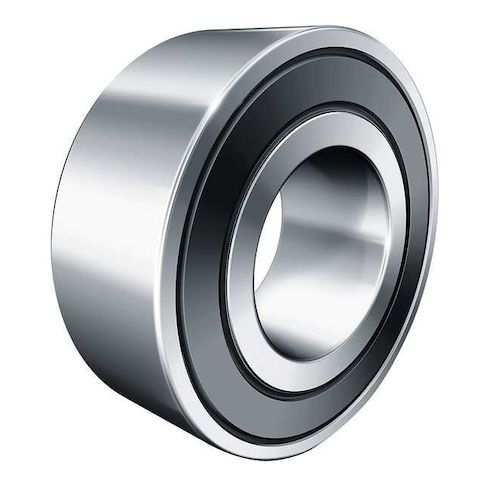

Angular Contact Ball Bearing, 8900 rpm
The FAG 3208/5208 angular contact ball bearing is a high-speed bearing designed for applications where precision and reliability are crucial. With a maximum speed of 8,900 RPM, it can handle demanding operations in various industries, including aerospace, automotive, and industrial machinery. The bearing's 30-degree contact angle and double-sealed design ensure smooth rotation and protection from contaminants. Its alloy steel construction and PA66 cage provide durability and resistance to wear. Suitable for temperatures ranging from -20 to 100°C, this bearing is ideal for applications requiring high-speed, high-precision performance in harsh environments.
Top product features:
- Double sealed for protection against contamination and moisture
- Cage material PA66 for increased durability and resistance to wear
- Contact angle of 30 degrees for improved load-carrying capacity and reduced vibration
Top product applications:
- Aerospace Industry
- Heavy Duty Industrial Equipment
- High Speed Spindle Applications
Angular Contact Ball Bearing, Bearing Industry Number 3208/5208, Bore Diameter 40 mm, Cage Material PA66, Closure Double Sealed, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Lubricant Material GA13 Lubricant, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 8,900 RPM, Maximum Temperature 100 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 80 mm, Overall Width 30.2 mm, Ring Material Alloy Steel, Seal Type Contact
Additional Information
- Country of Origin: SK
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.84
- Package Width: 3.84
- Package Height: 1.45
- Package Weight: 1.53
Product info last updated on March 14, 2026 7:29am UTC
Category: Bearings, V-belts and Power Transmission Equipment
