Angular Contact Ball Bearing, 11, 465 lb. MPN:3208-BD-XL-2Z
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8797363

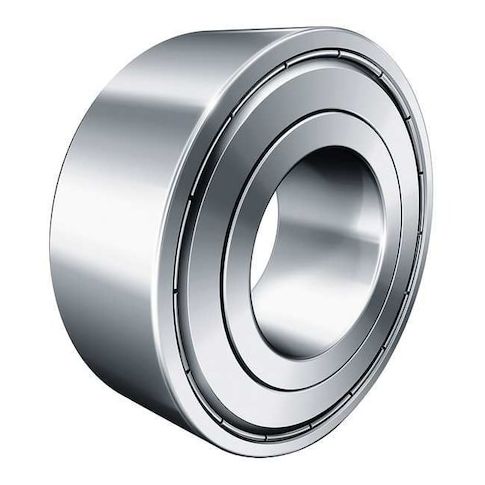

Angular Contact Ball Bearing, 11, 465 lb.
The Fag Bearings Angular Contact Ball Bearing is a high-performance bearing designed for demanding applications. With a contact angle of 30 degrees and a maximum speed of 8,900 RPM, it's ideal for use in high-speed machinery and equipment. Its double-shielded design and GA13 lubricant ensure long-lasting performance and reliability in temperatures ranging from -20 to 120 degrees C. Suitable for use in industrial machinery, automotive applications, and aerospace equipment, this bearing provides smooth operation and reduced maintenance. Its compact size and lightweight design make it an excellent choice for applications where space and weight are critical.
Top product features:
- Double shielded closure provides protection from debris and contamination.
- Contact angle of 30 degrees enables high precision and smooth operation.
- Maximum speed of 8,900 RPM allows for high-performance applications.
Top product applications:
- High-speed machinery such as gearboxes, pumps, and motors
- Industrial equipment such as conveyor belts and roller bearings
- Aerospace applications requiring high precision and reliability
Angular Contact Ball Bearing, Bearing Industry Number 3208/5208, Bore Diameter 40 mm, Cage Material Steel, Closure Double Shielded, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Lubricant Material GA13 Lubricant, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 8,900 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 80 mm, Overall Width 30.2 mm, Ring Material Alloy Steel, Seal Type Contact
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.84
- Package Width: 3.84
- Package Height: 1.45
- Package Weight: 1.60
