Angular Contact Ball Bearing, 7300 rpm MPN:3309-BD-XL-2HRS-C3
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8797275

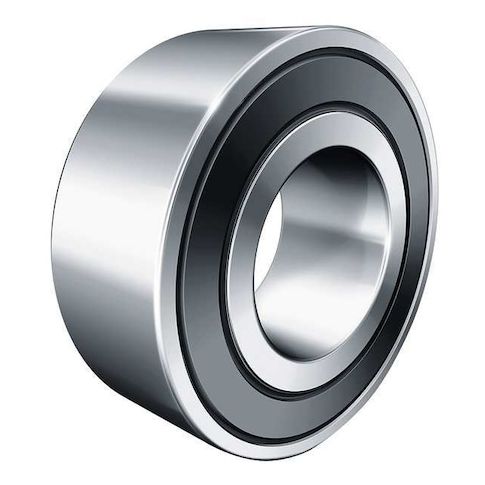

Angular Contact Ball Bearing, 7300 rpm
This high-performance Angular Contact Ball Bearing from FAG Bearings is designed for demanding applications requiring precise positioning and high speed capabilities. With a maximum speed of 7,300 RPM and a contact angle of 30 degrees, it provides optimal load-carrying capacity and rigidity. Suitable for use in industrial machinery, automotive systems, and aerospace applications, this bearing offers improved efficiency, reduced maintenance, and increased reliability. Its double-sealed design and GA13 lubricant ensure long-lasting performance in extreme temperatures (-20°C to 100°C). Ideal for applications where precision and speed are critical, this bearing delivers exceptional performance and durability.
Top product features:
- Double sealed to prevent contamination and maintain lubrication
- Cage material is steel for added strength and durability
- Contact angle of 30 degrees for improved load carrying capacity
Top product applications:
- High-Speed Industrial Machinery
- Pumps and Compressors
- Aerospace Applications
Angular Contact Ball Bearing, Bearing Industry Number 3309/5309, Bore Diameter 45 mm, Cage Material Steel, Closure Double Sealed, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Lubricant Material GA13 Lubricant, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 7,300 RPM, Maximum Temperature 100 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 100 mm, Overall Width 39.7 mm, Ring Material Alloy Steel, Seal Type Contact
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 4.30
- Package Height: 1.90
- Package Weight: 2.90
