Angular Contact Ball Bearing, 11, 465 lb. MPN:3208-BD-XL-2HRS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8797101

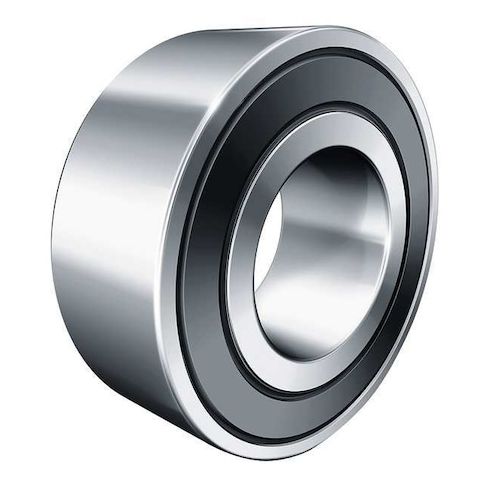

Angular Contact Ball Bearing, 11, 465 lb.
The FAG Angular Contact Ball Bearing 3208/5208 is a high-performance bearing designed for demanding applications. Its 30-degree contact angle and two-row configuration provide optimal load-carrying capacity and smooth operation. Suitable for use in high-speed, high-temperature environments, this bearing is ideal for industrial machinery, automotive applications, and aerospace equipment. With its double-sealed design and GA13 lubricant, it offers extended lifespan and reduced maintenance. Its compact size and lightweight design make it an excellent choice for space-constrained applications, ensuring reliable performance and efficient operation in a wide range of industries and applications.
Top product features:
- Double sealed to protect against dust and moisture
- Contact angle of 30 degrees for high precision and smooth operation
- Lubricant material GA13 for extended bearing life and reduced maintenance
Top product applications:
- High-speed machinery such as gearboxes and pumps
- Industrial equipment such as conveyor belts and roller bearings
- Aerospace applications such as aircraft landing gear and engine components
Angular Contact Ball Bearing, Bearing Industry Number 3208/5208, Bore Diameter 40 mm, Cage Material Steel, Closure Double Sealed, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Lubricant Material GA13 Lubricant, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 8,900 RPM, Maximum Temperature 100 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 80 mm, Overall Width 30.2 mm, Ring Material Alloy Steel, Seal Type Contact
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.84
- Package Width: 3.84
- Package Height: 1.45
- Package Weight: 1.59
