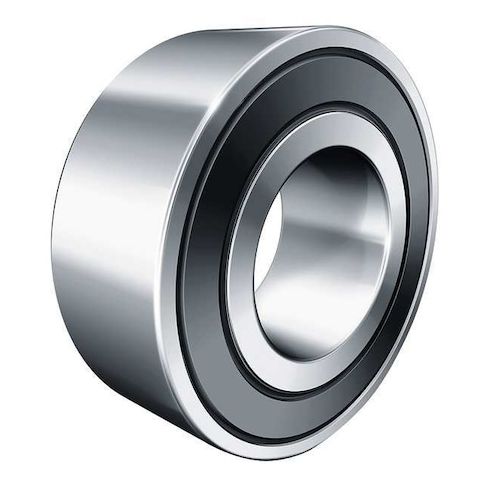

Angular Contact Ball Bearing, 11, 900 rpm
This Fag Bearings Angular Contact Ball Bearing is designed for high-speed applications, operating at up to 11,900 RPM in temperatures ranging from -20 to 100°C. With a contact angle of 30 degrees and a two-row design, it provides smooth and precise operation in demanding environments. Suitable for use in industrial machinery, gearboxes, and other high-performance equipment, this bearing offers increased efficiency and reduced maintenance needs. Its durable steel construction and double-sealed design ensure long-lasting performance and protection from contaminants, making it an ideal choice for applications requiring high-speed and high-precision operation.
Top product features:
- Double sealed for protection against dust and contaminants
- Contact angle of 30 degrees for high precision and stability
- Two rows of balls for increased load capacity and smooth operation
Top product applications:
- High-speed machinery such as machine tools and gearboxes
- Automotive applications including transmissions and engines
- Industrial equipment such as pumps and compressors
Angular Contact Ball Bearing, Bearing Industry Number 3206/5206, Bore Diameter 30 mm, Cage Material Steel, Closure Double Sealed, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Lubricant Material GA14 Lubricant, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 11,900 RPM, Maximum Temperature 100 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 62 mm, Overall Width 23.8 mm, Ring Material Alloy Steel, Seal Type Contact
Additional Information
- Country of Origin: BR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 2.30
- Package Height: 0.80
- Package Weight: 0.45
Product info last updated on April 11, 2026 7:03am UTC
Category: Bearings, V-belts and Power Transmission Equipment
