Angular Contact Ball Bearing, 25mm MPN:3205-BD-XL-2HRS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8797056

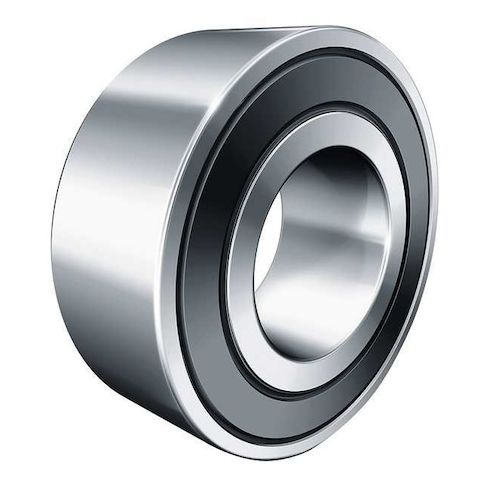

Angular Contact Ball Bearing, 25mm
The FAG 3205/5205 Angular Contact Ball Bearing is a high-performance bearing designed for use in demanding applications where precision and reliability are crucial. With a contact angle of 30 degrees, this bearing provides excellent load-carrying capacity and high-speed capability, making it ideal for use in industrial equipment, machine tools, and other heavy-duty machinery. Its double-sealed design and robust construction ensure long-lasting performance and protection against contaminants. Suitable for use in temperatures ranging from -20°C to 100°C, this bearing is perfect for a wide range of applications, including gearboxes, motors, and pumps.
Top product features:
- Double sealed for protection against dust and moisture
- Alloy steel ring material for increased strength and durability
- Cage material made of steel for improved bearing performance
Top product applications:
- Industrial machinery
- Heavy-duty gearboxes and transmissions
- High-speed spindle applications
Angular Contact Ball Bearing, Bearing Industry Number 3205/5205, Bore Diameter 25 mm, Cage Material Steel, Closure Double Sealed, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Lubricant Material GA14 Lubricant, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 14,300 RPM, Maximum Temperature 100 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 52 mm, Overall Width 20.6 mm, Ring Material Alloy Steel, Seal Type Contact
Additional Information
- Country of Origin: BR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.30
- Package Width: 2.10
- Package Height: 0.10
- Package Weight: 0.20
Product info last updated on March 7, 2026 1:17am UTC
Category: Bearings, V-belts and Power Transmission Equipment
