Angular Contact Ball Bearing, 4631 lb. MPN:3204-BD-XL-2HRS
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8797047

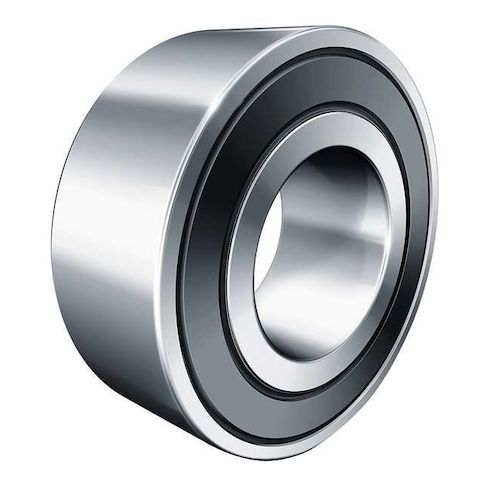

Angular Contact Ball Bearing, 4631 lb.
This high-performance Angular Contact Ball Bearing from FAG Bearings is designed for demanding applications, offering a contact angle of 30 degrees and a maximum speed of 16,100 RPM. With a bore diameter of 20 mm and an outside diameter of 47 mm, it provides a compact and efficient solution for various industries. Its double-sealed design and GA14 lubricant ensure reliable operation in harsh environments, while its alloy steel construction and steel cage provide durability and resistance to wear. Suitable for use in high-speed equipment, machinery, and industrial applications, this bearing offers improved performance, reduced maintenance, and increased productivity.
Top product features:
- Double Sealed for Dust and Moisture Protection
- 30 Degree Contact Angle for High Precision and Load Capacity
- Lubricated with GA14 Lubricant for Smooth Operation
Top product applications:
- High-speed industrial machinery
- Automotive transmission components
- Precision gearboxes
Angular Contact Ball Bearing, Bearing Industry Number 3204/5204, Bore Diameter 20 mm, Cage Material Steel, Closure Double Sealed, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Lubricant Material GA14 Lubricant, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 16,100 RPM, Maximum Temperature 100 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 47 mm, Overall Width 20.6 mm, Ring Material Alloy Steel, Seal Type Contact
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 2.00
- Package Height: 1.10
- Package Weight: 0.35
Product info last updated on April 19, 2026 1:44pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
