Angular Contact Ball Bearing, 7300 rpm MPN:3309-BD-XL
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8796943

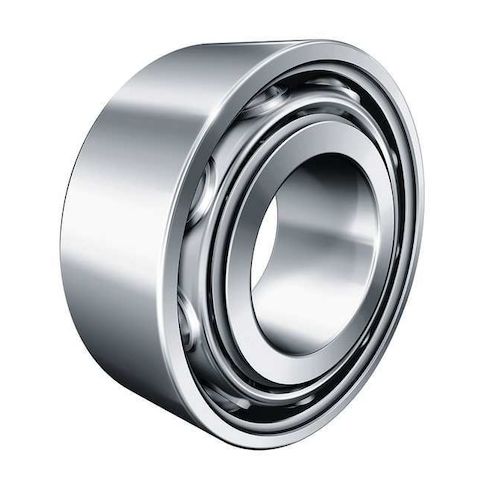

Angular Contact Ball Bearing, 7300 rpm
The FAG 7300 rpm Angular Contact Ball Bearing is a high-performance bearing designed for demanding applications. With a maximum speed of 7,300 RPM and a wide temperature range of -30 to 150°C, this bearing is ideal for use in high-speed machinery, such as gearboxes, pumps, and motors. Its 30-degree contact angle and two-row design provide excellent load-carrying capacity and precision. Suitable for use in a variety of industries, including aerospace, automotive, and industrial equipment, this bearing offers reliable performance and long lifespan. Its compact size and lightweight design make it an excellent choice for applications where space is limited.
Top product features:
- Two-row design for increased load capacity
- 30-degree contact angle for improved rigidity and stability
- Alloy steel ring material for enhanced strength and durability
Top product applications:
- High-Speed Spindle Applications
- High-Torque Electric Motor Applications
- Precision Machine Tool Applications
Angular Contact Ball Bearing, Bearing Industry Number 3309/5309, Bore Diameter 45 mm, Cage Material Steel, Closure Open, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 7,300 RPM, Maximum Temperature 150 Degrees C, Minimum Temperature -30 Degrees C, Number of Rows Two, Outside Diameter 100 mm, Overall Width 39.7 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 3
Additional Information
- Country of Origin: IN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.10
- Package Width: 4.10
- Package Height: 1.80
- Package Weight: 2.96
Product info last updated on March 20, 2026 10:29pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
