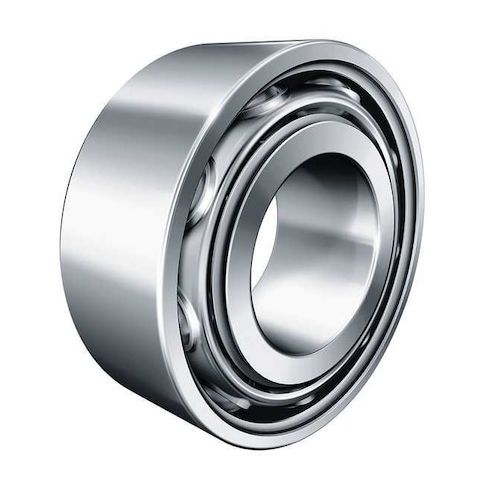

Angular Contact Ball Bearing, 11, 900 rpm MPN:3206-BD-XL
Angular Contact Ball Bearing, 11, 900 rpm
This high-performance Angular Contact Ball Bearing from FAG Bearings is designed for demanding applications requiring precise alignment and high speed operation. With a maximum speed of 11,900 RPM and a contact angle of 30 degrees, this bearing is ideal for use in precision machinery, robotics, and other high-speed equipment. Its robust construction and alloy steel material ensure reliable performance in extreme temperatures from -30°C to 120°C, making it suitable for use in a variety of industries, including automotive, aerospace, and industrial manufacturing. Its compact design and high-speed capabilities make it an excellent choice for applications requiring precise movement and control.
Top product features:
- Two-row design for increased load capacity
- Alloy steel ring material for durability and resistance to wear
- 30-degree contact angle for improved rigidity and reduced vibration
Top product applications:
- High-speed machinery such as turbines and gearboxes
- Industrial equipment such as pumps and compressors
- Automotive applications such as transmissions and differentials
Angular Contact Ball Bearing, Bearing Industry Number 3206/5206, Bore Diameter 30 mm, Cage Material Steel, Closure Open, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 11,900 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -30 Degrees C, Number of Rows Two, Outside Diameter 62 mm, Overall Width 23.8 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 3
Additional Information
- Country of Origin: BR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.70
- Package Width: 2.70
- Package Height: 1.40
- Package Weight: 0.66
Product info last updated on April 18, 2026 8:44pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
