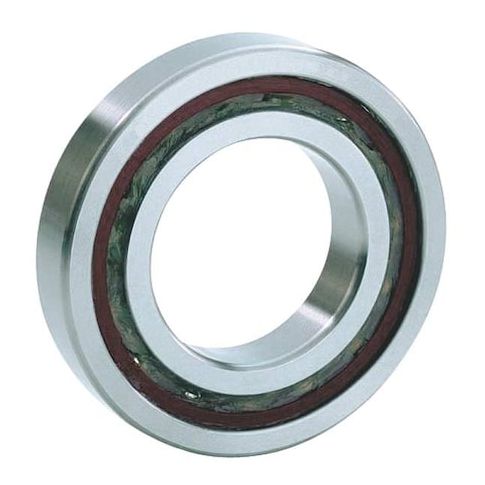

Angular Contact Ball BRG, 95 mm Bore MPN:7319-B-TVP-UA
Angular Contact Ball BRG, 95 mm Bore
The FAG Angular Contact Ball Bearing 7319 is a high-performance bearing designed for applications requiring precise positioning and high-speed operation. With a 95mm bore diameter and 40-degree contact angle, this bearing excels in demanding environments. Its PA66 cage material ensures durability and resistance to wear. Suitable for use in applications such as gearboxes, pumps, and motors, this bearing offers improved efficiency and reduced maintenance. Its high-speed capabilities and wide temperature range make it an ideal choice for industries including aerospace, automotive, and industrial machinery.
Top product features:
- Angular Contact design allows for high axial loads in both directions
- Cage material PA66 provides high strength and resistance to chemicals
- Contact angle of 40 degrees enables precise and smooth operation at high speeds
Top product applications:
- High-speed industrial machinery
- Aerospace applications
- Automotive transmissions
Angular Contact Ball Bearing, Bearing Industry Number 7319, Bore Diameter 95 mm, Cage Material PA66, Closure Open, Contact Angle 40 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Not Available, Maximum Speed 3,800 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -30 Degrees C, Number of Rows One, Outside Diameter 200 mm, Overall Width 45 mm, System of Measurement Metric, ABEC Rating 5, Dynamic Radial Load Capacity 189,000 N, Housing Fillet Radius 1 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.00
- Package Width: 4.20
- Package Height: 4.20
- Package Weight: 12.72
Product info last updated on March 15, 2026 10:39pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
