Angular Contact Ball BRG, 85 mm Bore MPN:7317-B-XL-TVP-UA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6721477

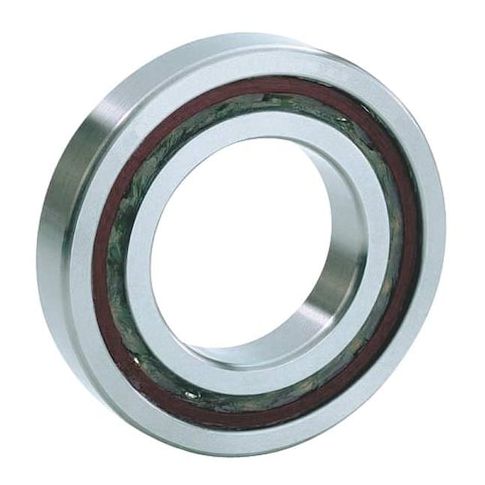

Angular Contact Ball BRG, 85 mm Bore
This Angular Contact Ball Bearing from FAG Bearings is designed for high-speed applications in harsh environments. With a 40-degree contact angle and a maximum speed of 4,000 RPM, it can handle demanding loads and temperatures from -30°C to 120°C. Its duplex configuration allows for precise alignment and smooth operation, making it ideal for use in industrial equipment, machinery, and precision instruments. Suitable for applications in the aerospace, automotive, and medical industries, this bearing provides reliable performance and long lifespan, reducing downtime and increasing productivity. Its compact design also makes it suitable for use in space-constrained systems.
Top product features:
- 40-Degree Contact Angle for improved load-carrying capacity
- Alloy Steel Ring Material for increased durability and resistance to wear
- Dynamic Radial Load Capacity of 167,000 N for handling heavy loads
Top product applications:
- High-speed machinery such as pumps and blowers
- Industrial gearboxes and gearmotors
- Aerospace and defense applications requiring high-speed and high-temperature capabilities
Angular Contact Ball Bearing, Bearing Industry Number 7317, Bore Diameter 85 mm, Cage Material PA66, Closure Open, Contact Angle 40 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Duplex, Maximum Speed 4,000 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -30 Degrees C, Number of Rows One, Outside Diameter 180 mm, Overall Width 41 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 5, Dynamic Radial Load Capacity 167,000 N
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 76 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.40
- Package Width: 7.60
- Package Height: 1.90
- Package Weight: 9.50
Product info last updated on April 19, 2026 8:41am UTC
Category: Bearings, V-belts and Power Transmission Equipment
