Angular Contact BRG, 65 mm Bore MPN:7213-B-XL-TVP-UA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6473887

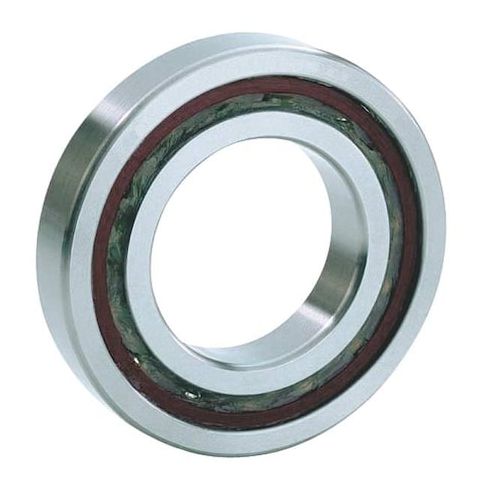

Angular Contact BRG, 65 mm Bore
The Fag Bearings 7213 Angular Contact Ball Bearing is a high-performance solution for demanding applications. With a 65 mm bore diameter and 40-degree contact angle, this bearing provides excellent load-carrying capacity and precision in high-speed and high-temperature environments. Ideal for use in gearboxes, pumps, and other machinery, this bearing offers improved reliability and reduced maintenance. Its ABEC 5 rating ensures smooth operation and long lifespan. Suitable for a wide range of industries, including automotive, aerospace, and industrial equipment, this bearing is a reliable choice for applications requiring high precision and performance.
Top product features:
- Angular Contact design allows for high radial and thrust loads in both directions
- Cage material PA66 provides a high level of fatigue resistance
- 40 degree contact angle enables high axial load capacity in one direction
Top product applications:
- Industrial machinery such as gearboxes and pumps
- Aerospace applications including aircraft landing gear and engine mounts
- High-speed printing and packaging machinery
Angular Contact Ball Bearing, Bearing Industry Number 7213, Bore Diameter 65 mm, Cage Material PA66, Closure Open, Contact Angle 40 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Duplex, Maximum Speed 6,000 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -30 Degrees C, Number of Rows One, Outside Diameter 120 mm, Overall Width 23 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 5, Dynamic Radial Load Capacity 71,000 N
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.20
- Package Width: 2.70
- Package Height: 2.70
- Package Weight: 2.39
Product info last updated on March 10, 2026 10:49pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
