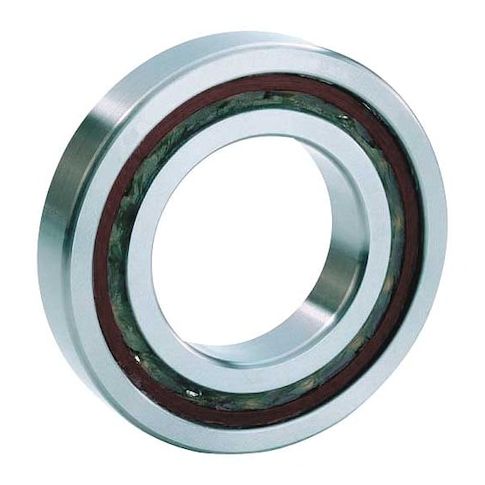

Angular Contact Ball Bearing, Bore 20 mm MPN:7304-B-XL-TVP-UA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3041954
Angular Contact Ball Bearing, Bore 20 mm
The FAG Angular Contact Ball Bearing 7304 is a high-performance bearing designed for applications where precise angular contact is required. With a contact angle of 40 degrees, this bearing provides excellent load-carrying capacity and reduces the risk of bearing damage. Suitable for use in high-speed applications, such as gearboxes, pumps, and motors, it withstands temperatures from -30°C to 120°C and operates at speeds up to 11,500 RPM. Its compact design and low weight make it ideal for space-constrained applications, while its ABEC 5 rating ensures precise rotation and minimal vibration. Perfect for industries such as aerospace, automotive, and industrial equipment.
Top product features:
- High-speed operation up to 11,500 RPM
- Operates over a wide temperature range from -30 to 120 degrees C
- Supports high radial loads of up to 21,700 N
Top product applications:
- High-speed machinery such as turbines and gearboxes
- Industrial equipment such as pumps and fans
- Aerospace applications such as aircraft landing gear
Angular Contact Ball Bearing, Bearing Industry Number 7304, Bore Diameter 20 mm, Cage Material PA66, Closure Open, Contact Angle 40 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Duplex, Maximum Speed 11,500 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -30 Degrees C, Number of Rows One, Outside Diameter 52 mm, Overall Width 15 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 5, Dynamic Radial Load Capacity 21,700 N
Additional Information
- Country of Origin: IN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.30
- Package Width: 0.70
- Package Height: 2.30
- Package Weight: 0.33
Product info last updated on February 17, 2026 12:04pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
