Angular Contact Ball Bearing, Bore 75 mm MPN:7215-B-MP-UA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2539117

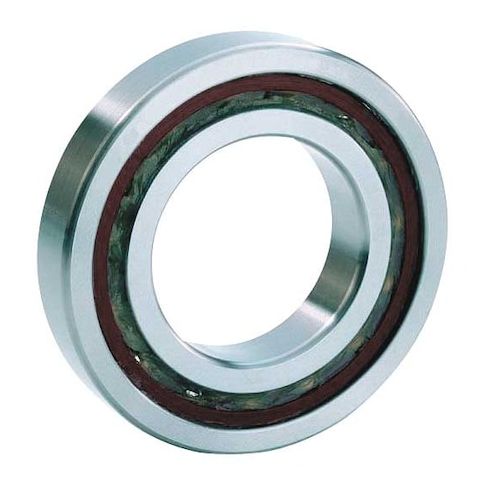

Angular Contact Ball Bearing, Bore 75 mm
The Fag Bearings Angular Contact Ball Bearing is a high-performance bearing designed for demanding applications where precision and reliability are critical. With a 40-degree contact angle and a maximum speed of 6,700 RPM, this bearing is ideal for use in high-speed machinery, such as gearboxes, pumps, and compressors. Its brass cage and open closure design provide optimal cooling and lubrication, extending the bearing's lifespan. Suitable for temperatures ranging from -30 to 150 degrees C, this bearing is perfect for use in a variety of industries, including aerospace, automotive, and industrial manufacturing. Its compact size and high load capacity make it a versatile solution.
Top product features:
- Angular contact design for high precision and smooth operation
- Brass cage material for improved corrosion resistance and durability
- 40 degree contact angle for increased bearing capacity and load support
Top product applications:
- High-speed machine tools
- High-precision gearboxes
- Aerospace applications
Angular Contact Ball Bearing, Bearing Industry Number 7215, Bore Diameter 75 mm, Cage Material Brass, Closure Open, Contact Angle 40 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Not Available, Maximum Speed 6,700 RPM, Maximum Temperature 150 Degrees C, Minimum Temperature -30 Degrees C, Number of Rows One, Outside Diameter 130 mm, Overall Width 25 mm, System of Measurement Metric, ABEC Rating 5, Dynamic Radial Load Capacity 73,000 N, Housing Fillet Radius 1 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 5.40
- Package Height: 1.30
- Package Weight: 3.01
Product info last updated on March 16, 2026 11:16am UTC
Category: Bearings, V-belts and Power Transmission Equipment
