Angular Contact Ball Bearing, Bore 35 mm MPN:7207-B-XL-TVP-UA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2533693

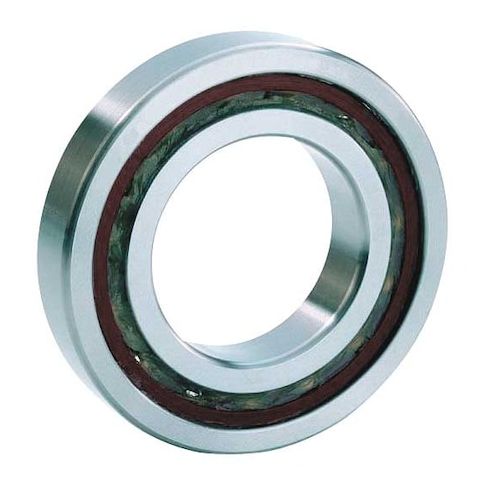

Angular Contact Ball Bearing, Bore 35 mm
This high-performance Angular Contact Ball Bearing from FAG Bearings is designed for demanding applications where precision and reliability are paramount. With a 40-degree contact angle and duplex bearing type, it provides exceptional load-carrying capacity and smooth operation. Suitable for use in high-speed machinery, this bearing can withstand temperatures from -30 to 120 degrees C and operate at speeds up to 9,600 RPM. Ideal for aerospace, automotive, and industrial applications, it ensures efficient power transmission and minimizes downtime. Its compact design and robust construction make it an excellent choice for applications requiring high precision and reliability.
Top product features:
- Angular Contact Ball Bearing design allows for high-speed operation up to 9,600 RPM.
- The bearing features a 40-degree contact angle for improved load-carrying capacity.
- The duplex design enables matched bearing pairs to operate in tandem for increased precision.
Top product applications:
- High-speed machinery
- Machine tool spindles
- Aerospace applications
Angular Contact Ball Bearing, Bearing Industry Number 7207, Bore Diameter 35 mm, Cage Material PA66, Closure Open, Contact Angle 40 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Duplex, Maximum Speed 9,600 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -30 Degrees C, Number of Rows One, Outside Diameter 72 mm, Overall Width 17 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 5, Dynamic Radial Load Capacity 30,000 N
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 3.10
- Package Height: 0.80
- Package Weight: 0.62
Product info last updated on March 13, 2026 12:04pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
