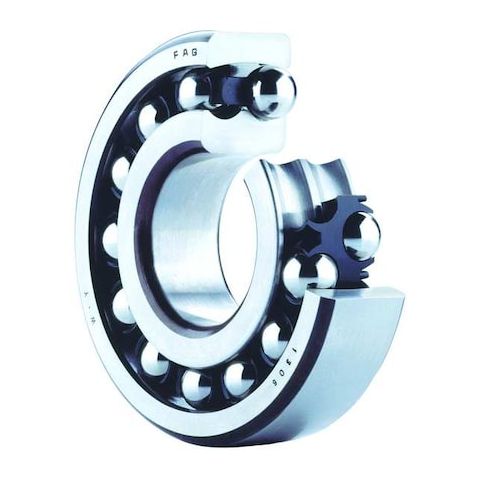

Self-Aligning Radial Ball Bearing, 2204 Industry Number, Double Sealed Closure, 20 mm Bore Dia, Alloy Steel MPN:2204-2RS-TVH
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1899152
Self-Aligning Radial Ball Bearing, 2204 Industry Number, Double Sealed Closure, 20 mm Bore Dia, Alloy Steel
The Fag Bearings Radial Bearing, Double Row, 20mm Bore is a high-performance bearing designed for demanding applications. Its self-aligning ball bearing design and alloy steel construction provide superior load-carrying capacity and resistance to wear and corrosion. With a maximum speed of 9,400 RPM and a temperature range of -20 to 100 degrees C, this bearing is suitable for use in high-speed and high-temperature applications. Its compact size and low weight make it ideal for use in robotics, medical devices, and other precision machinery. The bearing's double seal and thermoplastic cage ensure long-lasting performance and reliability.
Top product features:
- Self-aligning design allows for easy installation and reduced risk of bearing misalignment.
- Double-row configuration provides increased load-carrying capacity and improved stability.
- Thermoplastic cage material offers high resistance to wear and corrosion.
Top product applications:
- Conveyor systems in high-speed packaging applications
- High-precision machinery in the aerospace industry
- Heavy-duty industrial equipment in the manufacturing sector
Self-Aligning Ball Bearing, Bearing Industry Number 2204, Bore Diameter 20 mm, Outside Diameter 47 mm, Outer Ring Width 18 mm, Ring Material Alloy Steel, Bore Type Cylindrical, Closure Double Sealed, Cage Material Thermoplastic, System of Measurement Metric, ABEC Rating 1, Ball Material Alloy Steel, Ball Material Grade 100Cr6, Dynamic Radial Load Capacity 10,100 N, Lubricant Material Grease, Maximum Speed 9,400 RPM, Maximum Temperature 100 Degrees C, Minimum Temperature -20 Degrees C
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 0.90
- Package Height: 2.00
- Package Weight: 0.32
Product info last updated on April 9, 2026 4:41am UTC
Category: Bearings, V-belts and Power Transmission Equipment
