Angular Contact Ball BRG, Bore 50 mm MPN:7310-B-XL-TVP-UA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1387854

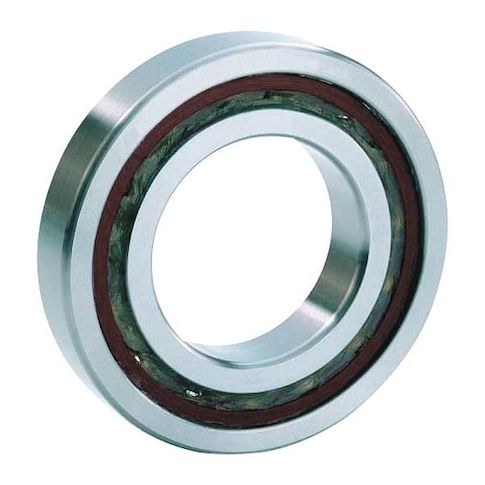

Angular Contact Ball BRG, Bore 50 mm
The Fag Bearings Angular Contact Ball BRG is a high-performance bearing designed for demanding applications. Ideal for use in gearboxes, pumps, and other high-speed equipment, this bearing features a 40-degree contact angle and a maximum speed of 6,100 RPM. Its alloy steel construction and ABEC 5 rating ensure high precision and durability. With a dynamic radial load capacity of 80,000 N, this bearing can withstand heavy loads and extreme temperatures (-30°C to 120°C). Suitable for use in aerospace, industrial, and automotive applications, the Angular Contact Ball BRG offers reliable performance and long lifespan.
Top product features:
- Open design allows for easy installation and maintenance
- 40-degree contact angle provides high precision and stability
- One-row design reduces friction and increases bearing life
Top product applications:
- High-speed machinery such as machine tools and gearboxes
- Industrial equipment such as pumps and compressors
- Precision instruments such as medical equipment and laboratory equipment
Angular Contact Ball Bearing, Bearing Industry Number 7310, Bore Diameter 50 mm, Cage Material PA66, Closure Open, Contact Angle 40 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Duplex, Maximum Speed 6,100 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -30 Degrees C, Number of Rows One, Outside Diameter 110 mm, Overall Width 27 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 5, Dynamic Radial Load Capacity 80,000 N
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 1.50
- Package Height: 4.60
- Package Weight: 2.44
Product info last updated on April 16, 2026 8:37am UTC
Category: Bearings, V-belts and Power Transmission Equipment
