Angular Contact Ball Bearing, Bore 50 mm MPN:7310-B-XL-MP-UA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1326412

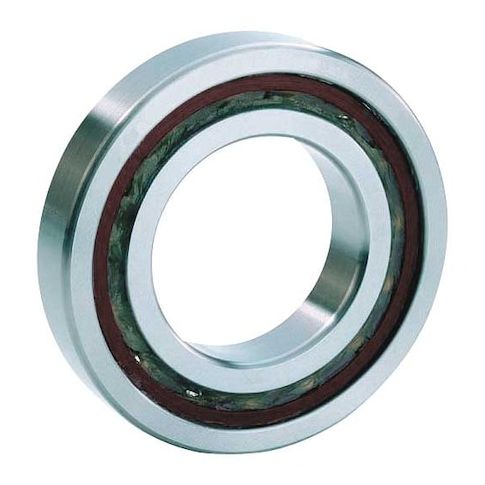

Angular Contact Ball Bearing, Bore 50 mm
The Fag Bearings Angular Contact Ball Bearing is a high-performance solution for demanding applications. With a contact angle of 40 degrees and a maximum speed of 3,400 RPM, this bearing is ideal for use in heavy-duty industrial equipment, such as gearboxes, pumps, and motors. Its brass cage and alloy steel rings provide excellent durability and resistance to high temperatures, making it suitable for use in environments up to 150°C. Suitable for use in the aerospace, automotive, and industrial sectors, this bearing offers improved efficiency, reduced maintenance, and increased productivity.
Top product features:
- Bore Diameter 50 mm allows for a compact installation in tight spaces.
- Cage Material Brass provides a durable and corrosion-resistant bearing cage.
- Contact Angle 40 Degrees enables high precision and stability in applications requiring angular contact.
Top product applications:
- High-speed industrial machinery such as pumps and gearboxes
- Automotive applications including transmissions and differentials
- Aerospace and defense applications including aircraft and helicopter gearboxes
Angular Contact Ball Bearing, Bearing Industry Number 7310, Bore Diameter 50 mm, Cage Material Brass, Closure Open, Contact Angle 40 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Duplex, Maximum Speed 3,400 RPM, Maximum Temperature 150 Degrees C, Minimum Temperature -30 Degrees C, Number of Rows One, Outside Diameter 110 mm, Overall Width 27 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 5, Dynamic Radial Load Capacity 80,000 N
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 4.80
- Package Height: 1.50
- Package Weight: 2.74
Product info last updated on March 29, 2026 10:11pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
