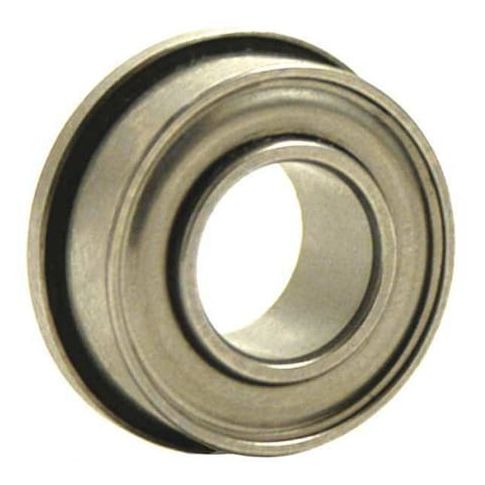

Ball Bearing, 0.1250in Dia, 40 lb, Flanged MPN:SFRW144ZZA3MC3SRL
Ball Bearing, 0.1250in Dia, 40 lb, Flanged
This miniature ball bearing from Ezo is designed for high-performance applications in compact spaces. With a bore diameter of 1/8 inch and an outside diameter of 1/4 inch, it provides a dynamic radial load capacity of 63.85 pounds. The double-shielded design and stainless steel construction ensure reliable operation and resistance to corrosion. Suitable for use in precision machinery, medical devices, and other applications where space is limited, this bearing offers extended inner ring capabilities and a chrome-plated finish for added durability. Its compact size and high load capacity make it an ideal choice for a wide range of industries and applications.
Top product features:
- Double shielded closure protects the bearing from contaminants and debris
- Extended inner ring provides additional support for the bearing and allows for easier installation
- Chrome plated finish enhances the bearing's corrosion resistance and durability
Top product applications:
- Precision clock mechanisms
- Robotics and automation systems
- Medical devices and equipment
Miniature Ball Bearing, Bearing Industry Number R144, Bore Diameter 1/8 in, Closure Double Shielded, Outer Ring Width 0.094 in, Outside Diameter 1/4 in, Ring Material Stainless Steel, System of Measurement Inch, Cage Material Steel, Cage Type Crown, Dynamic Radial Load Capacity 63.85 lbf, Extended Inner Ring Yes, Extended Inner Ring Width 0.141 in, Fillet Radius 0.0039 in, Finish Chrome Plated, Flange Diameter 0.296 in, Flange Thickness 0.031 in, Flange Type Flanged, Includes Retaining Ring No
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.70
- Package Width: 0.70
- Package Height: 0.50
- Package Weight: 0.00
Product info last updated on March 1, 2026 1:25pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
