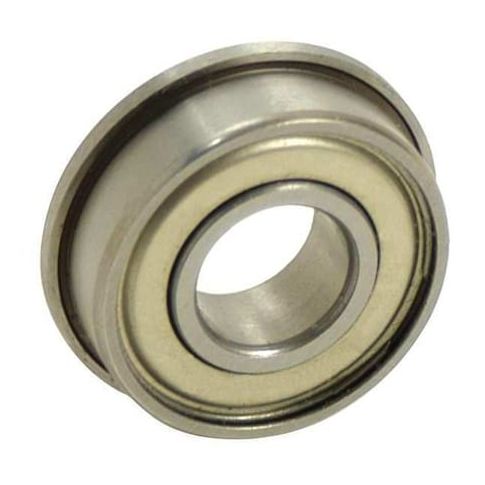

Ball Bearing, 0.1969in Dia, 63 lb, Flanged MPN:SMF115ZZP6MC3SRL
Ball Bearing, 0.1969in Dia, 63 lb, Flanged
This miniature ball bearing is designed for applications requiring high precision and reliability, such as robotics, medical devices, and precision machinery. With a stainless steel construction and chrome-plated finish, it offers excellent corrosion resistance and durability. The double-shielded design provides protection from debris and contaminants, while the flanged design allows for easy mounting and secure retention. The bearing's small size and high load capacity make it ideal for applications with limited space and high radial loads, such as in miniature gearboxes, precision motors, and other compact mechanical systems. It is suitable for use in a variety of industries, including aerospace, automotive, and industrial automation.
Top product features:
- Double shielded design for improved bearing protection and reduced debris entry
- Stainless steel ring material for increased durability and resistance to corrosion
- Chrome plated finish for reduced friction and improved bearing performance
Top product applications:
- Precision medical equipment
- Robotics and automation systems
- High-speed printing machinery
Miniature Ball Bearing, Bearing Industry Number MF115, Bore Diameter 5 mm, Closure Double Shielded, Outer Ring Width 4 mm, Outside Diameter 11 mm, Ring Material Stainless Steel, System of Measurement Metric, Cage Material Steel, Cage Type Ribbon, Dynamic Radial Load Capacity 716 N, Fillet Radius 0.15 mm, Finish Chrome Plated, Flange Diameter 12.6 mm, Flange Thickness 0.8 mm, Flange Type Flanged, Includes Retaining Ring No, Lubricant Material Grease
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 0.52
- Package Width: 0.52
- Package Height: 0.19
- Package Weight: 0.00
Product info last updated on April 9, 2026 4:00pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
