Swivel Connector, 3/4in., NPT, SS MPN:9023

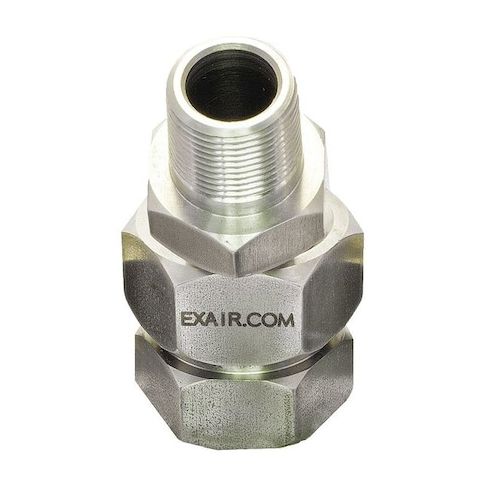

The EXAIR 9023 Swivel Connector is a stainless steel, 360-degree ball-joint fitting designed for use in hose and nozzle fluid systems. Its quick-connect feature allows for easy attachment and detachment of hoses and tools, reducing hose twisting and kinking. Ideal for applications involving high-pressure air or fluid transmission, this connector operates within a temperature range of 32 to 800 degrees Fahrenheit and supports a maximum working pressure of 250 psi. Suitable for use in industries such as manufacturing, pharmaceutical, and food processing, the EXAIR 9023 provides a reliable and efficient solution for fluid system connections.
Top product features:
- Swivel connector allows for 360-degree rotation through a sealed ball-joint pivot point.
- Reduces hose twisting and kinking.
- Operates within a temperature range of 32 to 800 degrees Fahrenheit.
Top product applications:
- Air-powered tools for cleaning and drying
- Automated production lines for assembly and inspection
- Fluid transfer systems in chemical processing plants
The EXAIR - 9023 is a swivel connector designed as a quick-connect fitting for hoses or attached tools, allowing 360-degree rotation through a sealed ball-joint pivot point. This provides 360-degree rotation to help reduce hose twisting and kinking while maintaining a sealed connection for air or fluid transmission. It has a 3/4 in NPT male inlet and a 3/4 in NPT female outlet and is intended for use in hose/nozzle fluid systems that match these connection types. The device operates within a temperature range of 32 to 800 degrees Fahrenheit and supports a maximum working pressure of 250 psi.
Key Features:
- - Material: Stainless Steel, specifically Type 303 and Type 316 grades.
- - Finish: Chrome-Plated surface treatment.
- - Connection Type: 3/4 in NPT male inlet x 3/4 in NPT female outlet.
- - Swivel Angle: 360 degrees enabled by a ball-joint swivel type.
- - Operating Temperature Range: 32°F to 800°F.
- - Maximum Working Pressure: 250 psi at 70°F.
- - Number of Pivot Points: 1.
- - Does not include pre-applied thread sealant.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 3.40
- Package Height: 3.30
- Package Weight: 1.28
