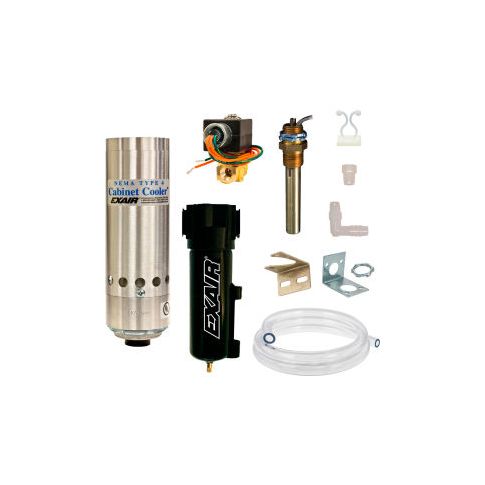

Exair® NEMA 4X St. Cabinet Cooler System w/Thermostat Control 40 CFM 1/4" NPT 2800 BTU/Hr 4840SS
Exair® NEMA 4X St. Cabinet Cooler System w/Thermostat Control 40 CFM 1/4" NPT 2800 BTU/Hr
The Exair NEMA 4X St. Cabinet Cooler System is a thermostat-controlled cooling solution designed for efficient operation in various environments. It saves energy by activating only when internal temperatures approach critical levels, making it ideal for fluctuating heat loads. Constructed of stainless steel, it's suitable for food service and corrosive environments. This compact cooler can be installed in minutes and maintains the integrity of a NEMA 4 enclosure. It's UL listed and CE compliant, suitable for applications such as programmable controllers, motor control centers, and CCTV cameras, providing benefits like low cost, quiet operation, and washdown protection.
Top product features:
- Thermostat control saves air by activating the cooler only when internal temperatures approach critical levels.
- The vortex tube produces cold air from compressed air with no moving parts.
- A low pressure relief valve closes and seals when the cooler is not operating to maintain the integrity of a NEMA 4 enclosure.
Top product applications:
- Programmable controllers
- Line control cabinets
- Motor control centers
Nema 4x thermostat control systems are the most efficient way to operate a cabinet cooler. They save air by activating the cooler only when internal temperatures approach critical levels. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. The standard thermostat control systems include an adjustable thermostat factory set at 95°f (35°c). Nema 4x (ip66) cabinet coolers are constructed of stainless steel for food service and corrosive environments. Exair® cabinet coolers incorporate a vortex tube to produce cold air from compressed air - with no moving parts. The compact cabinet cooler can be installed in minutes through a standard electrical knockout. Nema 4x (ip66) cabinet cooler® systems (dust-tight oil-tight splash resistant corrosion resistant indoor/outdoor service) incorporate a low pressure relief valve for both the vortex tube and cabinet air exhaust. This valve closes and seals when the cooler is not operating to maintain the integrity of a nema 4 enclosure. They are available in many cooling capacities for large and small control panels. All cabinet coolers are ul listed and ce compliant. Applications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" programmable controllers line control cabinets motor control centers relay panels nc/cnc systems modular control centers cctv cameras computer cabinets cool laser housings electronic scales nema 4 cabinet cooler advantages ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" low cost compact cooling capacities up to 5600 btu/hr. (1641 watts) quiet install in minutes maintain nema 4x integrity (ip66) stabilize enclosure temperature and humidity no cfc's stop nuisance tripping stop heat damage eliminate fans and filters eliminate lost production stop circuit drift stop dirt contamination provide washdown protection cabinet cooler standards and certifi
Additional Information
- UNSPSC: 40151601
- Brand: Exair Corporation
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: OH
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 10.50
- Package Width: 10.50
- Package Height: 4.50
- Package Weight: 9.95
Product info last updated on February 23, 2026 7:09pm UTC
Category: Pneumatic System Components
