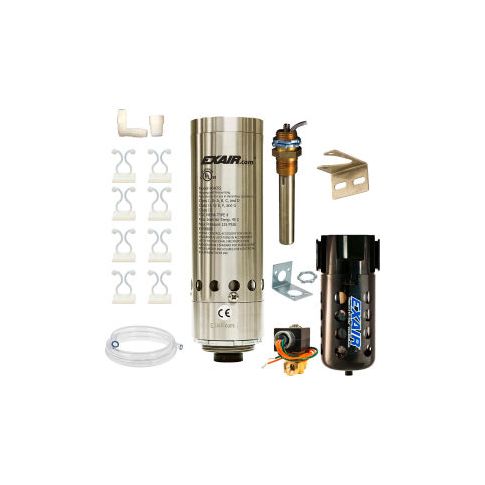

Exair® NEMA 4 Cabinet Cooler System w/240V Thermostat Control 15 CFM 1/4X"NPT 1000 BTU/Hr HZ4815-240
Exair® NEMA 4 Cabinet Cooler System w/240V Thermostat Control 15 CFM 1/4X"NPT 1000 BTU/Hr
Thermostat controlled hazardous location NEMA 4 cabinet cooler systems are engineered for use in classified areas, meeting UL requirements for Class I, II, and III locations. These systems provide a low-cost and reliable way to cool purged electric control panels in harsh environments. With cooling capacities from 1000 to 5600 BTU/hr, they can be installed in minutes through a standard electrical knockout. NEMA 4 thermostat control systems save air by activating the cooler only when internal temperatures approach critical levels, making them ideal for fluctuating heat loads. Suitable for applications in chemical processing, oil and gas, and other industries.
Top product features:
- Thermostat controlled operation to save energy by activating the cooler only when internal temperatures approach critical levels
- Low pressure relief valve that closes and seals when the cooler is not operating to maintain the integrity of a NEMA 4 enclosure
- Cold air distribution kit to direct the air for circulation or on to hot spots for efficient cooling
Top product applications:
- Electrical enclosures in classified areas
- Purged electric control panels found in hazardous environments
- Classified areas with fluctuating heat loads due to environmental or seasonal changes
Thermostat controlled hazardous location nema 4 (ip66) cabinet cooler systems are engineered and approved for use upon purged electrical enclosures found within classified areas. These hazloc cabinet cooler systems have been tested by ul and meet the stringent ul requirements for these areas. Cabinet cooler systems are a low cost and reliable way to cool purged electric control panels founds in the environments. The areas approved are class i div 1 groups a b c and d; class ii div 1 groups e f and g; and class iii. Hazardous location nema 4 (ip66) cabinet coolers are available in cooling capacities from 1000 btu/hr. To 5600 btu/hr. They can be installed in minutes through a standard electrical knockout. Nema 4 thermostat control systems are the most efficient way to operate a cabinet cooler. They save air by activating the cooler only when internal temperatures approach critical levels. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. Standard thermostat control systems include an adjustable thermostat factory set at 95°f (35°c). Nema 4 (ip66) cabinet coolers (dust-tight oil-tight splash resistant indoor/outdoor service) incorporate a low pressure relief valve which closes and seals when the cooler is not operating to maintain the integrity of a nema 4 enclosure. Each of these systems include a water-dirt filter separator to prevent water condensate and dirt from entering your enclosure and a cold air distribution kit used to direct the air for circulation or on to hot spots. All cabinet coolers are ul classified and ce compliant. Exair's hazloc cabinet cooler systems are not purged and pressurized control systems and should not be relied upon nor used in place of a purged and pressurized controller. They are meant for use in conjunction with a purged and pressurized control system. Applications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" progr
Additional Information
- UNSPSC: 40151601
- Brand: Exair Corporation
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: OH
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 10.50
- Package Width: 10.50
- Package Height: 4.50
- Package Weight: 6.25
Product info last updated on April 28, 2026 6:50am UTC
Category: Pneumatic System Components
