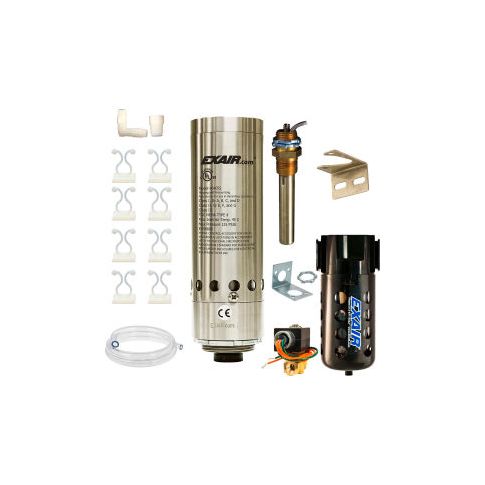

Exair® NEMA 4 Cabinet Cooler System Hazardous Location 120VAC 40 CFM 1/4"NPT 2800 BTU/Hr HZ4840
Exair® NEMA 4 Cabinet Cooler System Hazardous Location 120VAC 40 CFM 1/4"NPT 2800 BTU/Hr
Exair's NEMA 4 Cabinet Cooler System is engineered for use in classified areas, providing a reliable and low-cost solution for cooling purged electrical enclosures. Thermostat-controlled systems save energy by activating the cooler only when internal temperatures approach critical levels, making them ideal for environments with fluctuating heat loads. Applications include Class I, II, and III areas, as well as industries such as oil and gas, chemical processing, and pharmaceutical manufacturing. With UL classification and CE compliance, these systems meet the stringent requirements for hazardous locations, ensuring safe and efficient operation.
Top product features:
- Thermostat controlled operation to conserve air and reduce energy costs
- Low pressure relief valve to maintain enclosure integrity when not in operation
- Cold air distribution kit for directed airflow and circulation to hot spots
Top product applications:
- Oil and gas processing equipment
- Petrochemical plants
- Power generation and transmission
Thermostat controlled hazardous location nema 4 (ip66) cabinet cooler systems are engineered and approved for use upon purged electrical enclosures found within classified areas. These hazloc cabinet cooler systems have been tested by ul and meet the stringent ul requirements for these areas. Cabinet cooler systems are a low cost and reliable way to cool purged electric control panels founds in the environments. The areas approved are class i div 1 groups a b c and d; class ii div 1 groups e f and g; and class iii. Hazardous location nema 4 (ip66) cabinet coolers are available in cooling capacities from 1000 btu/hr. To 5600 btu/hr. They can be installed in minutes through a standard electrical knockout. Nema 4 thermostat control systems are the most efficient way to operate a cabinet cooler. They save air by activating the cooler only when internal temperatures approach critical levels. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. Standard thermostat control systems include an adjustable thermostat factory set at 95°f (35°c). Nema 4 (ip66) cabinet coolers (dust-tight oil-tight splash resistant indoor/outdoor service) incorporate a low pressure relief valve which closes and seals when the cooler is not operating to maintain the integrity of a nema 4 enclosure. Each of these systems include a water-dirt filter separator to prevent water condensate and dirt from entering your enclosure and a cold air distribution kit used to direct the air for circulation or on to hot spots. All cabinet coolers are ul classified and ce compliant. Exair's® hazloc cabinet cooler systems are not purged and pressurized control systems and should not be relied upon nor used in place of a purged and pressurized controller. They are meant for use in conjunction with a purged and pressurized control system. Applications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;
Additional Information
- UNSPSC: 40151601
- Brand: Exair Corporation
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: OH
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 10.50
- Package Width: 10.50
- Package Height: 4.50
- Package Weight: 6.25
Product info last updated on February 4, 2026 3:50pm UTC
Category: Pneumatic System Components
