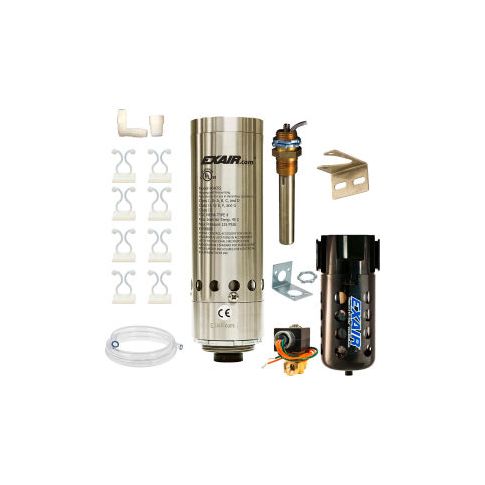

Exair® NEMA 4 Cabinet Cooler System Hazardous Location 120 VAC 15 CFM 1/4"NPT 1000 BTU/Hr HZ4815
Exair® NEMA 4 Cabinet Cooler System Hazardous Location 120 VAC 15 CFM 1/4"NPT 1000 BTU/Hr
Exair's NEMA 4 Cabinet Cooler System is designed for hazardous locations, providing a safe and efficient way to cool purged electrical enclosures. This thermostat-controlled system activates only when internal temperatures approach critical levels, saving air and energy. With a low pressure relief valve and water-dirt filter separator, it maintains the integrity of the enclosure and prevents water condensate and dirt from entering. Ideal for use in classified areas, such as oil refineries, chemical plants, and pharmaceutical facilities, this system is UL classified and CE compliant. It's perfect for applications where reliability and safety are paramount, including control panels, electrical rooms, and machinery enclosures.
Top product features:
- Thermostat controlled cooling system that activates only when internal temperatures approach critical levels
- Low pressure relief valve that closes and seals when the cooler is not operating to maintain the integrity of a NEMA 4 enclosure
- Cold air distribution kit used to direct the air for circulation or on to hot spots for improved cooling performance
Top product applications:
- Oil and Gas Drilling and Production Equipment
- Petrochemical Plants and Refineries
- Offshore Platforms and Marine Equipment
Thermostat controlled hazardous location nema 4 (ip66) cabinet cooler systems are engineered and approved for use upon purged electrical enclosures found within classified areas. These hazloc cabinet cooler systems have been tested by ul and meet the stringent ul requirements for these areas. Cabinet cooler systems are a low cost and reliable way to cool purged electric control panels founds in the environments. The areas approved are class i div 1 groups a b c and d; class ii div 1 groups e f and g; and class iii. Hazardous location nema 4 (ip66) cabinet coolers are available in cooling capacities from 1000 btu/hr. To 5600 btu/hr. They can be installed in minutes through a standard electrical knockout. Nema 4 thermostat control systems are the most efficient way to operate a cabinet cooler. They save air by activating the cooler only when internal temperatures approach critical levels. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. Standard thermostat control systems include an adjustable thermostat factory set at 95°f (35°c). Nema 4 (ip66) cabinet coolers (dust-tight oil-tight splash resistant indoor/outdoor service) incorporate a low pressure relief valve which closes and seals when the cooler is not operating to maintain the integrity of a nema 4 enclosure. Each of these systems include a water-dirt filter separator to prevent water condensate and dirt from entering your enclosure and a cold air distribution kit used to direct the air for circulation or on to hot spots. All cabinet coolers are ul classified and ce compliant. Exair's® hazloc cabinet cooler systems are not purged and pressurized control systems and should not be relied upon nor used in place of a purged and pressurized controller. They are meant for use in conjunction with a purged and pressurized control system. Applications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;
Additional Information
- UNSPSC: 40151601
- Brand: Exair Corporation
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: OH
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 10.50
- Package Width: 10.50
- Package Height: 4.50
- Package Weight: 6.25
Product info last updated on February 7, 2026 8:44pm UTC
Category: Pneumatic System Components
