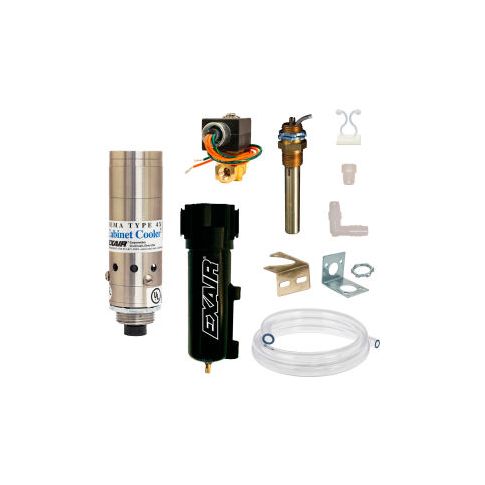

Exair® NEMA 4X St. Cabinet Cooler System w/Thermostat Control 8 CFM 1/8" NPT 550 BTU/Hr 4808SS
Exair® NEMA 4X St. Cabinet Cooler System w/Thermostat Control 8 CFM 1/8" NPT 550 BTU/Hr
The Exair NEMA 4X St. Cabinet Cooler System with Thermostat Control is a reliable and efficient solution for maintaining optimal temperatures in control panels and enclosures. Ideal for applications with fluctuating heat loads, this system activates only when internal temperatures approach critical levels, saving air and reducing energy costs. Suitable for use in food service and corrosive environments, it's constructed of stainless steel and features a low-pressure relief valve for added protection. Benefits include low cost, compact design, and quiet operation, making it perfect for applications such as programmable controllers, motor control centers, and CCTV cameras.
Top product features:
- Thermostat control activates the cooler only when internal temperatures approach critical levels
- Vortex tube produces cold air from compressed air with no moving parts
- Low pressure relief valve maintains the integrity of a NEMA 4 enclosure when the cooler is not operating
Top product applications:
- Programmable controllers
- Motor control centers
- NC/CNC systems
Nema 4x thermostat control systems are the most efficient way to operate a cabinet cooler. They save air by activating the cooler only when internal temperatures approach critical levels. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. The standard thermostat control systems include an adjustable thermostat factory set at 95°f (35°c). Nema 4x (ip66) cabinet coolers are constructed of stainless steel for food service and corrosive environments. Sound level measured with optional cold muffler installed. Exair® cabinet coolers incorporate a vortex tube to produce cold air from compressed air - with no moving parts. The compact cabinet cooler can be installed in minutes through a standard electrical knockout. Nema 4x (ip66) cabinet cooler® systems (dust-tight oil-tight splash resistant corrosion resistant indoor/outdoor service) incorporate a low pressure relief valve for both the vortex tube and cabinet air exhaust. This valve closes and seals when the cooler is not operating to maintain the integrity of a nema 4 enclosure. They are available in many cooling capacities for large and small control panels. All cabinet coolers are ul listed and ce compliant. Applications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" programmable controllers line control cabinets motor control centers relay panels nc/cnc systems modular control centers cctv cameras computer cabinets cool laser housings electronic scales nema 4 cabinet cooler advantages ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" low cost compact cooling capacities up to 5600 btu/hr. (1641 watts) quiet install in minutes maintain nema 4x integrity (ip66) stabilize enclosure temperature and humidity no cfc's stop nuisance tripping stop heat damage eliminate fans and filters eliminate lost production stop circuit drift stop dirt contamination provide
Additional Information
- UNSPSC: 40151601
- Brand: Exair Corporation
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: OH
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 10.50
- Package Width: 10.50
- Package Height: 4.50
- Package Weight: 6.60
Product info last updated on February 7, 2026 3:48am UTC
Category: Pneumatic System Components
