Exair® ATEX NEMA 4 Cabinet Cooler System 15 CFM 1/4 NPT 1000 BTU/Hr 24 VDC ATEX4815-24VDC
Exair® ATEX NEMA 4 Cabinet Cooler System 15 CFM 1/4 NPT 1000 BTU/Hr 24 VDC

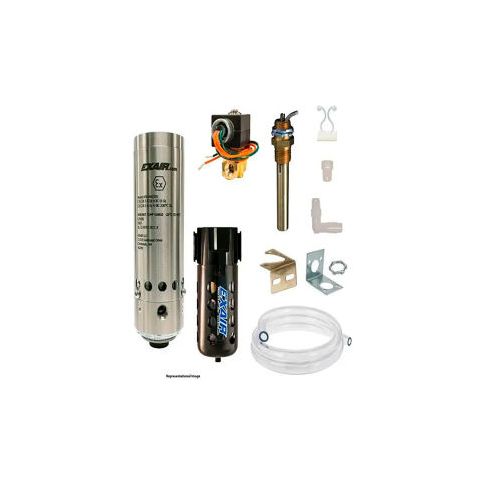

The Exair ATEX NEMA 4 Cabinet Cooler System is designed for use in classified areas with purged electrical enclosures. This low-cost and reliable cooling solution is engineered to provide efficient temperature control, saving air by activating the cooler only when internal temperatures approach critical levels. Suitable for applications such as programmable controllers, line control cabinets, and electronic scales, the system includes a thermostat-controlled cooler, water-dirt filter separator, and cold air distribution kit. CE compliant and ATEX approved, this system maintains the integrity of a NEMA 4 (IP66) enclosure and is ideal for environments with fluctuating heat loads.
Top product features:
- Thermostat control allows the cooler to activate only when internal temperatures approach critical levels, saving air and reducing energy consumption.
- The low pressure relief valve closes and seals when the cooler is not operating, maintaining the integrity of a NEMA 4 (IP66) enclosure.
- A water-dirt filter separator is included to prevent water condensate and dirt from entering the enclosure, ensuring reliable operation.
Top product applications:
- Programmable controllers
- Line control cabinets
- Motor control centers
Aluminum thermostat controlled atex cabinet cooler systems are engineered and approved for use upon purged electrical enclosures found within classified areas. These atex cabinet cooler systems have been tested by ul and meet the stringent atex requirements for these areas. Cabinet cooler systems are a low cost and reliable way to cool purged electric control panels founds in the environments. They can be installed in minutes through a standard electrical knockout. Thermostat control systems are the most efficient way to operate a cabinet cooler. They save air by activating the cooler only when internal temperatures approach critical levels. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. Standard thermostat control systems include an adjustable thermostat factory set at 95°f (35°c). Atex cabinet coolers incorporate a low pressure relief valve which closes and seals when the cooler is not operating to maintain the integrity of a nema 4 (ip66) enclosure (dust-tight oil-tight splash resistant indoor/outdoor service). Each of these systems include a water-dirt filter separator to prevent water condensate and dirt from entering your enclosure and a cold air distribution kit used to direct the air for circulation or on to hot spots. All cabinet coolers are ce compliant. Exair®'s atex cabinet cooler systems are not purged and pressurized control systems and should not be relied upon nor used in place of a purged and pressurized controller. They are meant for use in conjunction with a purged and pressurized control system. Applications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" programmable controllers line control cabinets motor control centers relay panels nc/cnc systems modular control centers cctv cameras computer cabinets laser housings electronic scales aluminum atex cabinet cooler advantages ul style"margin-top0px; padding-to
Additional Information
- UNSPSC: 40151601
- Brand: Exair Corporation
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: OH
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 10.50
- Package Width: 10.50
- Package Height: 4.50
- Package Weight: 6.25
Product info last updated on February 4, 2026 8:07pm UTC
Category: Pneumatic System Components
