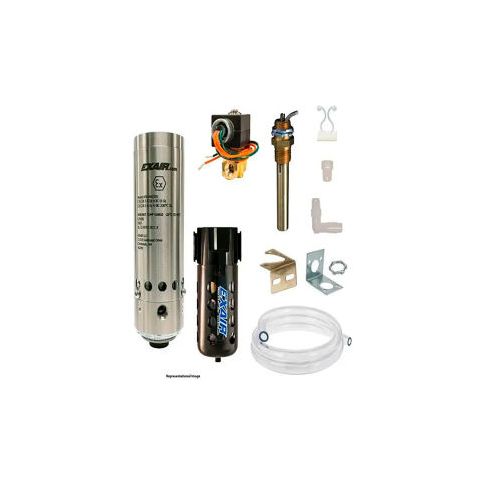

Exair® ATEX NEMA 4 Cabinet Cooler System 30 CFM 1/4 NPT 2000 BTU/Hr 240 VAC ATEX4830-240
Exair® ATEX NEMA 4 Cabinet Cooler System 30 CFM 1/4 NPT 2000 BTU/Hr 240 VAC
Exair's ATEX NEMA 4 Cabinet Cooler System is designed for use in classified areas, providing a reliable and low-cost solution for cooling purged electrical enclosures. Thermostat-controlled operation saves energy by activating the cooler only when internal temperatures approach critical levels. The system includes a water-dirt filter separator and cold air distribution kit for efficient air circulation. Suitable for use with programmable controllers, motor control centers, relay panels, and other electronic equipment, this cabinet cooler system is CE compliant and meets stringent ATEX requirements. It's ideal for applications in harsh environments, including industrial settings and outdoor use.
Top product features:
- Aluminum thermostat controlled cabinet cooler systems are engineered for use on purged electrical enclosures found within classified areas.
- Thermostat control systems are the most efficient way to operate a cabinet cooler, saving air by activating the cooler only when internal temperatures approach critical levels.
- A low pressure relief valve closes and seals when the cooler is not operating to maintain the integrity of a NEMA 4 (IP66) enclosure.
Top product applications:
- Programmable controllers
- Line control cabinets
- Motor control centers
Aluminum thermostat controlled atex cabinet cooler systems are engineered and approved for use upon purged electrical enclosures found within classified areas. These atex cabinet cooler systems have been tested by ul and meet the stringent atex requirements for these areas. Cabinet cooler systems are a low cost and reliable way to cool purged electric control panels founds in the environments. They can be installed in minutes through a standard electrical knockout. Thermostat control systems are the most efficient way to operate a cabinet cooler. They save air by activating the cooler only when internal temperatures approach critical levels. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. Standard thermostat control systems include an adjustable thermostat factory set at 95°f (35°c). Atex cabinet coolers incorporate a low pressure relief valve which closes and seals when the cooler is not operating to maintain the integrity of a nema 4 (ip66) enclosure (dust-tight oil-tight splash resistant indoor/outdoor service). Each of these systems include a water-dirt filter separator to prevent water condensate and dirt from entering your enclosure and a cold air distribution kit used to direct the air for circulation or on to hot spots. All cabinet coolers are ce compliant. Exair®'s atex cabinet cooler systems are not purged and pressurized control systems and should not be relied upon nor used in place of a purged and pressurized controller. They are meant for use in conjunction with a purged and pressurized control system. Applications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" programmable controllers line control cabinets motor control centers relay panels nc/cnc systems modular control centers cctv cameras computer cabinets laser housings electronic scales aluminum atex cabinet cooler advantages ul style"margin-top0px; padding-to
Additional Information
- UNSPSC: 40151601
- Brand: Exair Corporation
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: OH
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 10.50
- Package Width: 10.50
- Package Height: 4.50
- Package Weight: 6.25
Product info last updated on February 4, 2026 8:12pm UTC
Category: Pneumatic System Components
