Exair® ATEX NEMA 4 Cabinet Cooler System w/120V Thermostat Control 25 CFM1/4"NPT1700 BTU/Hr ATEX4825
Exair® ATEX NEMA 4 Cabinet Cooler System w/120V Thermostat Control 25 CFM1/4"NPT1700 BTU/Hr

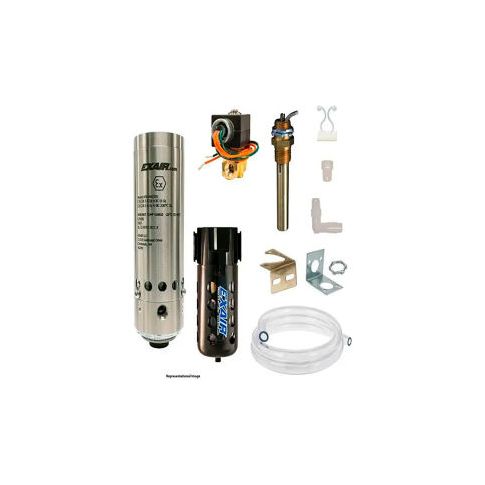

Exair's ATEX NEMA 4 Cabinet Cooler Systems provide reliable and efficient cooling for purged electrical enclosures in classified areas, meeting stringent ATEX requirements for zones 2 and 22. Thermostat-controlled systems save energy by activating only when internal temperatures approach critical levels, making them ideal for environments with fluctuating heat loads. Suitable for various applications, including programmable controllers, motor control centers, relay panels, and computer cabinets, these systems ensure optimal performance and maintain the integrity of NEMA 4 enclosures. By incorporating a low-pressure relief valve, water-dirt filter separator, and cold air distribution kit, Exair's cabinet coolers provide a comprehensive solution for temperature control.
Top product features:
- Thermostat control for efficient operation, saving air by activating the cooler only when internal temperatures approach critical levels.
- Low pressure relief valve to maintain the integrity of a NEMA 4 enclosure by closing and sealing when the cooler is not operating.
- Cold air distribution kit for directing the air for circulation or on to hot spots, improving airflow and cooling effectiveness.
Top product applications:
- Programmable controllers
- Line control cabinets
- Motor control centers
Aluminum thermostat controlled atex cabinet cooler systems are engineered and approved for use upon purged electrical enclosures found within classified areas. These atex cabinet cooler systems have been tested by ul and meet the stringent atex requirements for these areas. Cabinet cooler systems are a low cost and reliable way to cool purged electric control panels founds in the environments. The areas approved are zones 2 and 22. Atex cabinet coolers are available in cooling capacities from 1000 btu/hr. To 5600 btu/hr. They can be installed in minutes through a standard electrical knockout. Thermostat control systems are the most efficient way to operate a cabinet cooler. They save air by activating the cooler only when internal temperatures approach critical levels. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. Standard thermostat control systems include an adjustable thermostat factory set at 95%f (35%c). Atex cabinet coolers incorporate a low pressure relief valve which closes and seals when the cooler is not operating to maintain the integrity of a nema 4 enclosure (dust-tight oil-tight splash resistant indoor/outdoor service). Each of these systems include a water-dirt filter separator to prevent water condensate and dirt from entering your enclosure and a cold air distribution kit used to direct the air for circulation or on to hot spots. All cabinet coolers are ce compliant. Exair's atex cabinet cooler systems are not purged and pressurized control systems and should not be relied upon nor used in place of a purged and pressurized controller. They are meant for use in conjunction with a purged and pressurized control system applications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" programmable controllers line control cabinets motor control centers relay panels nc/cnc systems modular control centers cctv cameras computer cabinet
Additional Information
- UNSPSC: 40151601
- Brand: Exair Corporation
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: OH
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 10.50
- Package Width: 10.50
- Package Height: 4.50
- Package Weight: 6.25
Product info last updated on March 26, 2026 6:19pm UTC
Category: Pneumatic System Components
