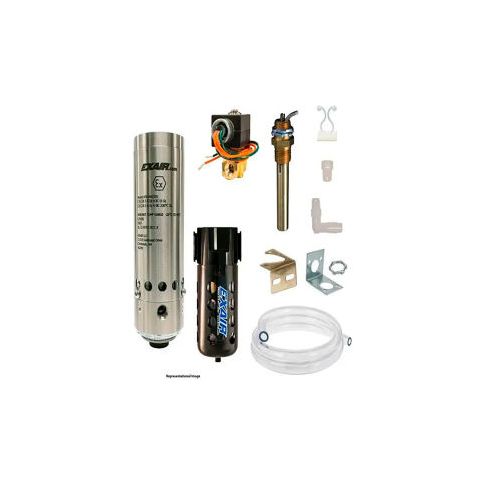

Exair® ATEX NEMA 4 Cabinet Cooler System 25 CFM 1/4 NPT 1700 BTU/Hr 240 VAC ATEX4825-240
Exair® ATEX NEMA 4 Cabinet Cooler System 25 CFM 1/4 NPT 1700 BTU/Hr 240 VAC
Exair's ATEX NEMA 4 Cabinet Cooler System is designed for use in purged electrical enclosures found in classified areas. These low-cost and reliable systems cool electric control panels in harsh environments, saving energy by activating only when internal temperatures approach critical levels. They are ideal for applications such as programmable controllers, line control cabinets, and NC/CNC systems. With features like a low-pressure relief valve and water-dirt filter separator, these systems maintain enclosure integrity and direct cold air to hot spots, ensuring optimal performance and prolonging equipment lifespan in demanding settings.
Top product features:
- Thermostat control system to activate the cooler only when internal temperatures approach critical levels
- Low pressure relief valve to maintain the integrity of a NEMA 4 (IP66) enclosure
- Cold air distribution kit to direct the air for circulation or on to hot spots
Top product applications:
- Programmable controllers
- Line control cabinets
- Motor control centers
Aluminum thermostat controlled atex cabinet cooler systems are engineered and approved for use upon purged electrical enclosures found within classified areas. These atex cabinet cooler systems have been tested by ul and meet the stringent atex requirements for these areas. Cabinet cooler systems are a low cost and reliable way to cool purged electric control panels founds in the environments. They can be installed in minutes through a standard electrical knockout. Thermostat control systems are the most efficient way to operate a cabinet cooler. They save air by activating the cooler only when internal temperatures approach critical levels. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. Standard thermostat control systems include an adjustable thermostat factory set at 95°f (35°c). Atex cabinet coolers incorporate a low pressure relief valve which closes and seals when the cooler is not operating to maintain the integrity of a nema 4 (ip66) enclosure (dust-tight oil-tight splash resistant indoor/outdoor service). Each of these systems include a water-dirt filter separator to prevent water condensate and dirt from entering your enclosure and a cold air distribution kit used to direct the air for circulation or on to hot spots. All cabinet coolers are ce compliant. Exair®'s atex cabinet cooler systems are not purged and pressurized control systems and should not be relied upon nor used in place of a purged and pressurized controller. They are meant for use in conjunction with a purged and pressurized control system. Applications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" programmable controllers line control cabinets motor control centers relay panels nc/cnc systems modular control centers cctv cameras computer cabinets laser housings electronic scales aluminum atex cabinet cooler advantages ul style"margin-top0px; padding-to
Additional Information
- UNSPSC: 40151601
- Brand: Exair Corporation
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: OH
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 10.50
- Package Width: 10.50
- Package Height: 4.50
- Package Weight: 6.25
Product info last updated on April 5, 2026 4:46am UTC
Category: Pneumatic System Components
