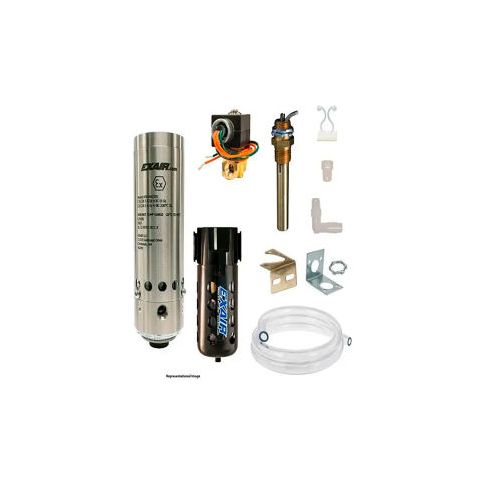

Exair® ATEX NEMA 4X Cabinet Cooler System 30 CFM 1/4 NPT 2000 BTU/Hr 24 VDC ATEX4830SS-24VDC
Exair® ATEX NEMA 4X Cabinet Cooler System 30 CFM 1/4 NPT 2000 BTU/Hr 24 VDC
Exair's ATEX NEMA 4X Cabinet Cooler System is a reliable and efficient solution for cooling purged electrical enclosures in classified areas. Designed for use in zones 2 and 22, these systems provide a low-cost and low-maintenance way to regulate internal temperatures. Thermostat-controlled operation saves energy by only activating when necessary, and the low-pressure relief valve maintains enclosure integrity. Ideal for applications such as programmable controllers, line control cabinets, and motor control centers, these systems offer improved performance and extended equipment life in demanding environments.
Top product features:
- Stainless steel construction provides corrosion resistance for indoor/outdoor use.
- Thermostat control system activates the cooler only when internal temperatures approach critical levels, saving air and reducing energy consumption.
- Low pressure relief valve seals when the cooler is not operating to maintain the integrity of a NEMA 4X enclosure.
Top product applications:
- Programmable controllers
- Line control cabinets
- Motor control centers
Stainless steel thermostat controlled atex cabinet cooler systems are engineered and approved for use upon purged electrical enclosures found within classified areas. These atex cabinet cooler systems have been tested by ul and meet the stringent atex requirements for these areas. Cabinet cooler systems are a low cost and reliable way to cool purged electric control panels founds in the environments. The areas approved are zones 2 and 22. Atex cabinet coolers are available in cooling capacities from 1000 btu/hr. To 5600 btu/hr. They can be installed in minutes through a standard electrical knockout. Thermostat control systems are the most efficient way to operate a cabinet cooler. They save air by activating the cooler only when internal temperatures approach critical levels. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. Standard thermostat control systems include an adjustable thermostat factory set at 95°f (35°c). Atex cabinet coolers incorporate a low pressure relief valve which closes and seals when the cooler is not operating to maintain the integrity of a nema 4x enclosure (dust-tight oil-tight splash resistant indoor/outdoor service corrosion resistant). Each of these systems include a water-dirt filter separator to prevent water condensate and dirt from entering your enclosure and a cold air distribution kit used to direct the air for circulation or on to hot spots. All cabinet coolers are ce compliant. Exair®'s atex cabinet cooler systems are not purged and pressurized control systems and should not be relied upon nor used in place of a purged and pressurized controller. They are meant for use in conjunction with a purged and pressurized control system. Applications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" programmable controllers line control cabinets motor control centers relay panels nc/cnc systems modular control ce
Additional Information
- UNSPSC: 40151601
- Brand: Exair Corporation
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: OH
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 10.50
- Package Width: 10.50
- Package Height: 4.50
- Package Weight: 9.95
Product info last updated on February 14, 2026 2:57pm UTC
Category: Pneumatic System Components
