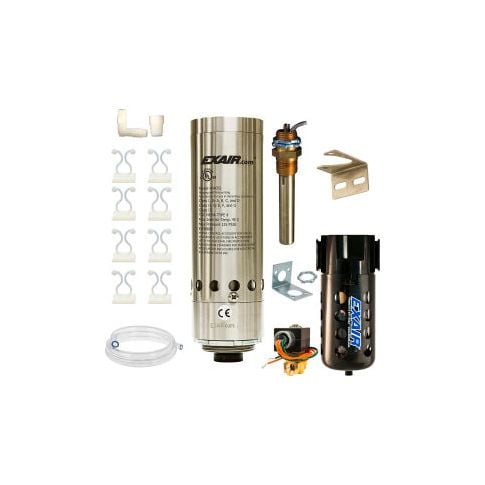

Exair® NEMA 4X Cabinet Cooler System w/120V Thermostat Control 40 CFM 1/4X"NPT 2800 BTU/Hr HZ4840SS
Exair® NEMA 4X Cabinet Cooler System w/120V Thermostat Control 40 CFM 1/4X"NPT 2800 BTU/Hr
Exair's NEMA 4X Cabinet Cooler Systems are engineered for use in hazardous locations, such as classified areas, and are UL approved for purged electrical enclosures. These systems provide a low-cost and reliable way to cool control panels in harsh environments, including food service and corrosive areas. Thermostat control systems save energy by activating the cooler only when internal temperatures approach critical levels, making them ideal for fluctuating heat loads. Applications include Class I, II, and III areas, with cooling capacities from 1000 to 5600 BTU/hr, and are CE compliant.
Top product features:
- Thermostat control for energy efficiency and reduced air usage
- Low pressure relief valve maintains the integrity of a NEMA 4X enclosure
- Cold air distribution kit for directed airflow and improved circulation
Top product applications:
- Class I Div 1 Groups A, B, C, and D
- Class II Div 1 Groups E, F, and G
- Class III
Thermostat controlled hazardous location nema 4x (ip66) cabinet cooler systems are engineered and approved for use upon purged electrical enclosures found within classified areas. These hazloc cabinet cooler systems have been tested by ul and meet the stringent ul requirements for these areas. Cabinet cooler systems are a low cost and reliable way to cool purged electric control panels founds in the environments. The areas approved are class i div 1 groups a b c and d; class ii div 1 groups e f and g; and class iii. Hazardous location nema 4x (ip66) cabinet coolers are constructed of stainless steel for food service and corrosive environments and are available in cooling capacities from 1000 btu/hr. To 5600 btu/hr. They can be installed in minutes through a standard electrical knockout. Nema 4x thermostat control systems are the most efficient way to operate a cabinet cooler. They save air by activating the cooler only when internal temperatures approach critical levels. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. Standard thermostat control systems include an adjustable thermostat factory set at 95°f (35°c). Nema 4x (ip66) cabinet coolers (dust-tight oil-tight splash resistant indoor/outdoor service) incorporate a low pressure relief valve which closes and seals when the cooler is not operating to maintain the integrity of a nema 4x enclosure. Each of these systems include a water-dirt filter separator to prevent water condensate and dirt from entering your enclosure and a cold air distribution kit used to direct the air for circulation or on to hot spots. All cabinet coolers are ul classified and ce compliant. Exair®'s hazloc cabinet cooler systems are not purged and pressurized control systems and should not be relied upon nor used in place of a purged and pressurized controller. They are meant for use in conjunction with a purged and pressurized contro
Additional Information
- UNSPSC: 40151601
- Brand: Exair Corporation
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: OH
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 10.50
- Package Width: 10.50
- Package Height: 4.50
- Package Weight: 9.95
Product info last updated on February 5, 2026 5:49am UTC
Category: Pneumatic System Components
