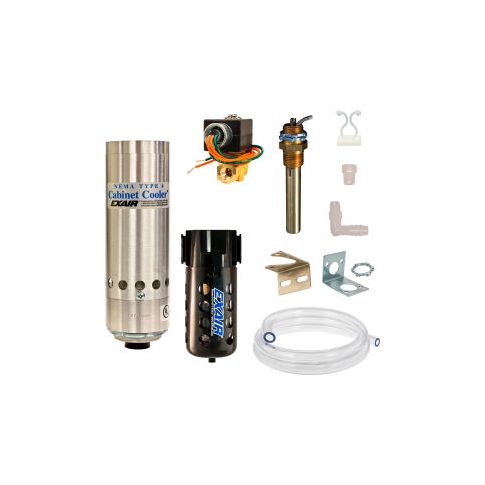

Exair® NEMA 4 Cabinet Cooler System w/Thermostat Control 25 CFM 1/4" NPT 1700 BTU/Hr 4825
Exair® NEMA 4 Cabinet Cooler System w/Thermostat Control 25 CFM 1/4" NPT 1700 BTU/Hr
The Exair NEMA 4 Cabinet Cooler System with Thermostat Control is a highly efficient and cost-effective solution for cooling control panels and electronic enclosures. This system saves air by activating the cooler only when internal temperatures approach critical levels, making it ideal for applications with fluctuating heat loads. It's perfect for use in programmable controllers, line control cabinets, motor control centers, and other electronic enclosures. Benefits include low cost, compact design, quiet operation, and no CFCs. Applications include CCTV cameras, computer cabinets, cool laser housings, and more, resulting in stabilized enclosure temperature and humidity, reduced production downtime, and increased productivity.
Top product features:
- Thermostat control system that activates the cooler only when internal temperatures approach critical levels
- Low pressure relief valve for both the cooler and cabinet air exhaust to maintain NEMA integrity of the electronic enclosure
- Cold air distribution kit for directing the air for circulation or on to hot spots
Top product applications:
- Programmable controllers
- Line control cabinets
- Motor control centers
Nema 4 (ip66) thermostat control systems are the most efficient way to operate a cabinet cooler. They save air by activating the cooler only when internal temperatures approach critical levels. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. Standard thermostat control systems include an adjustable thermostat factory set at 95°f (35°c). Nema 4 (ip66) cabinet cooler® systems (dust-tight oil-tight splash resistant indoor/outdoor service) incorporate a low pressure relief valve for both the cooler and cabinet air exhaust. This valve closes and seals when the cooler is not operating to maintain the nema integrity of the electronic enclosure. Nema 4 (ip66) cabinet coolers are available in many cooling capacities for large and small control panels. Unlike an expensive freon-based air conditioner exair® cabinet coolers incorporate a vortex tube to produce cold air from compressed air - with no moving parts. They can be installed in minutes through a standard electrical knockout. Each of these systems include a water-dirt filter separator to prevent water condensate and dirt from entering your enclosure and a cold air distribution kit used to direct the air for circulation or on to hot spots. All cabinet coolers are ul listed and ce compliant. Applications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" programmable controllers line control cabinets motor control centers relay panels nc/cnc systems modular control centers cctv cameras computer cabinets cool laser housings electronic scales nema 4 cabinet cooler advantages ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" low cost compact cooling capacities up to 5600 btu/hr. (1641 watts) quiet stabilize enclosure temperature and humidity no cfc's stop nuisance tripping stop heat damage eliminate fans and filters eliminate lost production stop circuit drift st
Additional Information
- UNSPSC: 40151601
- Brand: Exair Corporation
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: OH
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 10.50
- Package Width: 10.50
- Package Height: 4.50
- Package Weight: 6.25
Product info last updated on February 8, 2026 9:52am UTC
Category: Pneumatic System Components
