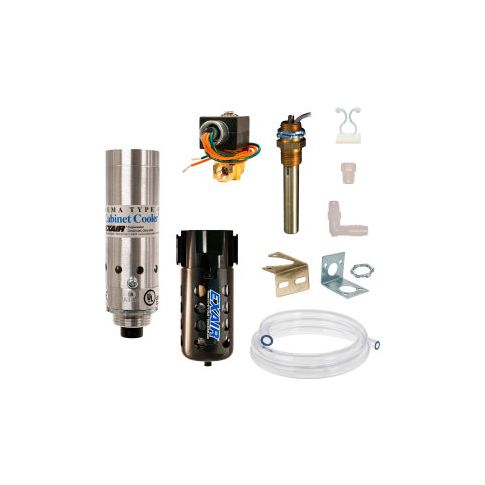

Exair® NEMA 4 Cabinet Cooler System w/240V Thermostat Control8 CFM 1/8"NPT 550 BTU/Hr 4808-240

Nema 4 (ip66) thermostat control systems are the most efficient way to operate a cabinet cooler. They save air by activating the cooler only when internal temperatures approach critical levels. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. Standard thermostat control systems include an adjustable thermostat factory set at 95°f (35°c). Nema 4 (ip66) cabinet cooler® systems (dust-tight oil-tight splash resistant indoor/outdoor service) incorporate a low pressure relief valve for both the cooler and cabinet air exhaust. This valve closes and seals when the cooler is not operating to maintain the nema integrity of the electronic enclosure. Sound level measured with optional cold muffler installed. Nema 4 (ip66) cabinet coolers are available in many cooling capacities for large and small control panels. Unlike an expensive freon-based air conditioner exair®cabinet coolers incorporate a vortex tube to produce cold air from compressed air - with no moving parts. They can be installed in minutes through a standard electrical knockout. Each of these systems include a water-dirt filter separator to prevent water condensate and dirt from entering your enclosure and a cold air distribution kit used to direct the air for circulation or on to hot spots. All cabinet coolers are ul listed and ce compliant. Applications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" programmable controllers line control cabinets motor control centers relay panels nc/cnc systems modular control centers cctv cameras computer cabinets cool laser housings electronic scales nema 4 cabinet cooler advantages ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" low cost compact cooling capacities up to 5600 btu/hr. (1641 watts)quiet install in minutes stabilize enclosure temperature and humidity no cfc's no moving parts - maintenance free mount i
