Exair® NEMA 12 Cabinet Cooler System w/240V Thermostat Control 40 CFM 1/4 NPT 2800 BTU/Hr 4340-240

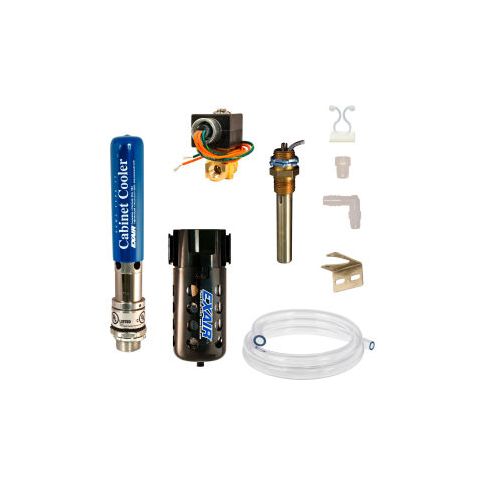

Exair® NEMA 12 Cabinet Cooler System w/240V Thermostat Control 40 CFM 1/4 NPT 2800 BTU/Hr
The Exair NEMA 12 Cabinet Cooler System is a reliable and efficient solution for cooling electronic control panels in general industrial environments. Ideal for applications with fluctuating heat loads, this system activates only when internal temperatures approach critical levels, saving air and energy. With its compact design and easy installation, it can be mounted in a standard electrical knockout, maintaining the NEMA rating of the enclosure. Benefits include quiet operation, no moving parts, and no CFCs, making it a low-cost and maintenance-free solution for industries such as manufacturing, HVAC, and food processing.
Top product features:
- Thermostat control activates the cooler only when internal temperatures approach critical levels, saving air and reducing energy consumption.
- The vortex tube produces cold air from compressed air with no moving parts, providing a maintenance-free operation.
- The compact design allows for easy installation in minutes through a standard electrical knockout, minimizing downtime and installation costs.
Top product applications:
- Programmable controllers
- Line control cabinets
- Motor control centers
Nema 12 (ip54) cabinet cooler® systems (dust-tight oil-tight) are ideal for general industrial environments where no liquids or corrosives are present. Dirt dust and oil resistant nema 12 thermostat control systems are the most efficient way to operate a cabinet cooler. They save air by activating the cooler only when internal temperatures approach critical levels. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. Standard thermostat control systems include an adjustable thermostat factory set at 95°f (35°c). Sound level measured with optional cold muffler installed the nema 12 (ip54) compact cabinet cooler can be installed in minutes through a standard electrical knockout and maintains the nema rating of the electronic enclosure. All cabinet coolers are ul listed and ce compliant. They are a low cost reliable way to cool and purge electronic control panels. Exair® cabinet coolers incorporate a vortex tube to produce cold air from compressed air - with no moving parts. Applications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" programmable controllers line control cabinets motor control centers relay panels nc/cnc systems modular control centers cctv cameras computer cabinets cool laser housings electronic scales advantages ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" cooling capacities up to 5600 btu/hr. (1641 watts) quiet install in minutes stabilize enclosure temperature and humidity no cfc's no moving parts - maintenance free mount in standard electrical knockout stop nuisance tripping stop heat damage eliminate fans and filters eliminate lost production stop circuit drift stop dirt contamination provide washdown protection cabinet cooler standards and certifications exair® cabinet cooler systems comply with osha's safety requirements the eu general product safety directive (2001/95/
Additional Information
- UNSPSC: 40151601
- Brand: Exair Corporation
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: OH
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 10.50
- Package Width: 10.50
- Package Height: 4.50
- Package Weight: 4.50
Product info last updated on March 24, 2026 8:15pm UTC
Category: Pneumatic System Components
