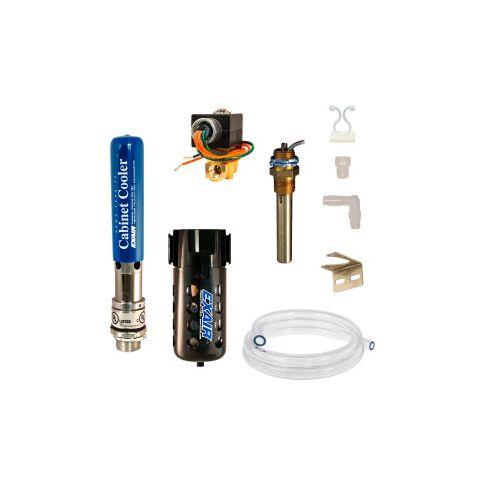

Exair® NEMA 12 Cabinet Cooler System 15 CFM 1/4" NPT 1000 BTU/Hr Thermostat Control 4315
Exair® NEMA 12 Cabinet Cooler System 15 CFM 1/4" NPT 1000 BTU/Hr Thermostat Control
Exair's NEMA 12 Cabinet Cooler System is ideal for general industrial environments where reliable cooling is essential. This compact and efficient system saves air by activating only when internal temperatures approach critical levels, making it perfect for applications with fluctuating heat loads. Suitable for use in programmable controllers, line control cabinets, and motor control centers, this system provides cooling capacities up to 5600 BTU/hr, stabilizes enclosure temperature and humidity, and eliminates fans and filters. It's a low-cost, maintenance-free solution that protects against dirt and dust, ensuring optimal performance and reducing downtime.
Top product features:
- Thermostat control system that saves air by activating the cooler only when internal temperatures approach critical levels
- Vortex tube produces cold air from compressed air with no moving parts
- Compact design allows for installation in minutes through a standard electrical knockout
Top product applications:
- Programmable controllers
- Line control cabinets
- Motor control centers
Nema 12 (ip54) cabinet cooler® systems (dust-tight oil-tight) are ideal for general industrial environments where no liquids or corrosives are present. Dirt dust and oil resistant nema 12 thermostat control systems are the most efficient way to operate a cabinet cooler. They save air by activating the cooler only when internal temperatures approach critical levels. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. Standard thermostat control systems include an adjustable thermostat factory set at 95°f (35°c). Sound level measured with optional cold muffler installed. The nema 12 (ip54) compact cabinet cooler can be installed in minutes through a standard electrical knockout and maintains the nema rating of the electronic enclosure. All cabinet coolers are ul listed and ce compliant. They are a low cost reliable way to cool and purge electronic control panels. Exair® cabinet coolers incorporate a vortex tube to produce cold air from compressed air - with no moving parts. Applications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" programmable controllers line control cabinets motor control centers relay panels nc/cnc systems modular control centers cctv cameras computer cabinets cool laser housings electronic scales advantages ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" cooling capacities up to 5600 btu/hr. (1641 watts) quiet stabilize enclosure temperature and humidity no cfc's no moving parts - maintenance free mount in standard electrical knockout stop nuisance tripping stop heat damage eliminate fans and filters eliminate lost production stop circuit drift provide protection from dirt and dust cabinet cooler standards and certifications exair® cabinet cooler systems comply with osha's safety requirements the eu general product safety directive (2001/95/ec) and meet the noise limitatio
Additional Information
- UNSPSC: 40151601
- Brand: Exair Corporation
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: OH
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 10.50
- Package Width: 10.50
- Package Height: 4.50
- Package Weight: 4.50
Product info last updated on March 14, 2026 4:10am UTC
Category: Pneumatic System Components
