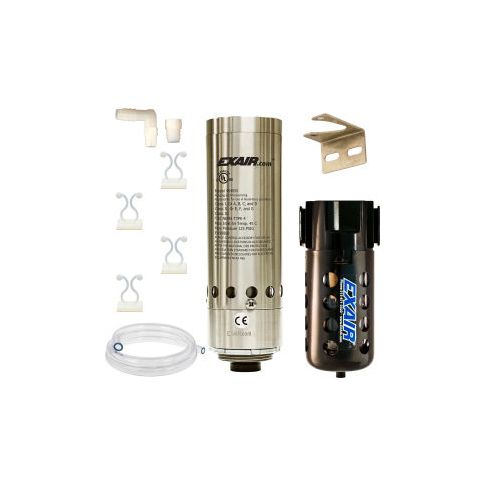

Exair® NEMA 4X Cabinet Cooler System Hazardous Location 15 CFM 1/4X"NPT 1000 BTU/Hr HZ4715SS
Exair® NEMA 4X Cabinet Cooler System Hazardous Location 15 CFM 1/4X"NPT 1000 BTU/Hr
Exair's NEMA 4X Cabinet Cooler System is a reliable and cost-effective solution for cooling purged electrical enclosures in hazardous locations. Engineered for continuous operation, these systems meet stringent UL requirements for Class I, II, and III areas, ensuring safe and efficient cooling. With a cooling capacity of 1000 BTU/hr to 5600 BTU/hr, these systems can be installed in minutes and include features such as a low-pressure relief valve and water-dirt filter separator. Ideal for use in programmable controllers, motor control centers, and other applications, Exair's Cabinet Cooler Systems provide constant cooling and positive purge, extending equipment life and improving performance.
Top product features:
- Continuous operation capability
- Low pressure relief valve to maintain enclosure integrity
- Cold air distribution kit for directed air circulation or hot spot targeting
Top product applications:
- Programmable controllers
- Line control cabinets
- Motor control centers
Continuous operation hazardous location nema 4x (ip66) cabinet cooler systems are engineered and approved for use upon purged electrical enclosures found within classified areas. These hazloc cabinet cooler systems have been tested by ul and meet the stringent ul requirements for these areas. Cabinet cooler systems are a low cost and reliable way to cool purged electric control panels founds in the environments. The areas approved are class i div 1 groups a b c and d; class ii div 1 groups e f and g; and class iii. Hazardous location nema 4x (ip66) cabinet coolers are constructed of stainless steel for food service and corrosive environments and are available in cooling capacities from 1000 btu/hr. To 5600 btu/hr. They can be installed in minutes through a standard electrical knockout. Continuous operation hazardous location nema 4x cabinet cooler® systems are recommended when constant cooling and constant positive purge are desirable. Nema 4x (ip66) cabinet coolers (dust-tight oil-tight splash resistant indoor/outdoor service) incorporate a low pressure relief valve which closes and seals when the cooler is not operating to maintain the integrity of a nema 4x enclosure. Each of these systems include a water-dirt filter separator to prevent water condensate and dirt from entering your enclosure and a cold air distribution kit used to direct the air for circulation or on to hot spots. All cabinet coolers are ul classified and ce compliant. Exair's® hazloc cabinet cooler systems are not purged and pressurized control systems and should not be relied upon nor used in place of a purged and pressurized controller. They are meant for use in conjunction with a purged and pressurized control system. Applications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" programmable controllers line control cabinets motor control centers relay panels nc/cnc systems modular control centers cctv cameras computer cabinets cool laser housings electron
Additional Information
- UNSPSC: 40151601
- Brand: Exair Corporation
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: OH
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 10.00
- Package Width: 10.00
- Package Height: 4.00
- Package Weight: 7.00
Product info last updated on January 23, 2026 4:29pm UTC
Category: Pneumatic System Components
