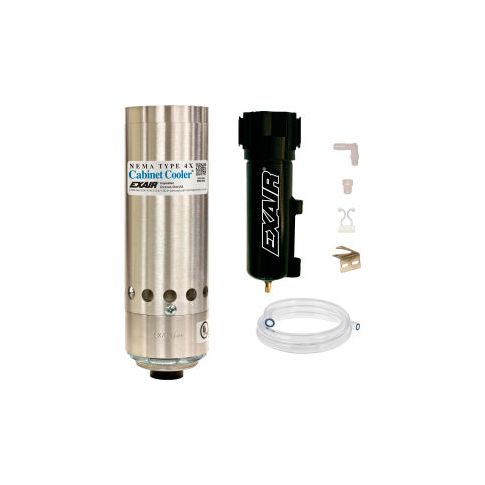

Exair® NEMA 4X St. Cabinet Cooler System Continuous Operation 25 CFM 1/4" NPT 1700 BTU/Hr 4725SS

Nema 4x (ip66) cabinet coolers (dust-tight oil-tight splash resistant corrosion resistant indoor/outdoor service) incorporate a low pressure relief valve for both the vortex tube and cabinet air exhaust. This valve closes and seals when the cooler is not operating to maintain the integrity of a nema 4x enclosure. Nema 4x (ip66) cabinet coolers are constructed of stainless steel for food service and corrosive environments. They are available in many cooling capacities for large and small control panels. Nema 4x continuous operation cabinet cooler® systems are recommended when constant cooling and constant positive purge are desirable. Systems for continuous operation include a cabinet cooler cold air distribution kit and filter. Nema 4x (ip66) cabinet coolers are available in many cooling capacities for large and small control panels. All cabinet coolers are ul listed and ce compliant. They are a low cost reliable way to cool and purge electronic control panels. Exair® cabinet coolers incorporate a vortex tube to produce cold air from compressed air - with no moving parts. The compact cabinet cooler can be installed in minutes through a standard electrical knockout. Applications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" programmable controllers line control cabinets motor control centers relay panels nc/cnc systems modular control centers cctv cameras computer cabinets cool laser housings electronic scales nema 4 cabinet cooler advantages ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" cooling capacities up to 5600 btu/hr. (1641 watts) quiet stabilize enclosure temperature and humidity no cfc's no moving parts - maintenance free stop nuisance tripping stop heat damage eliminate fans and filters eliminate lost production stop circuit drift stop dirt contamination provide washdown protection cabinet cooler standards and certifications exair® cabinet cooler systems comply with osha's safet
