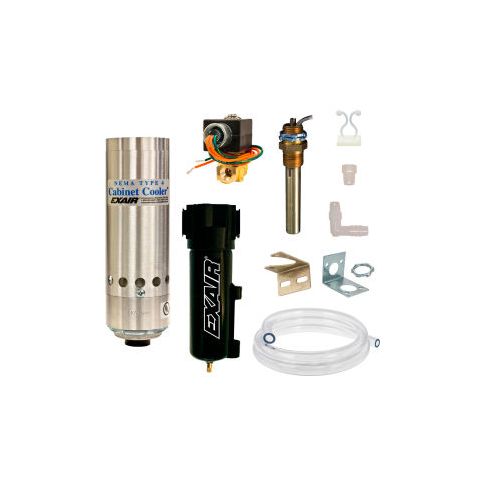

Exair® NEMA 4X St. Cabinet Cooler System w/240V Thermostat Control 25 CFM 1/4"NPT1700 BTU/Hr 4825SS-240
Exair® NEMA 4X St. Cabinet Cooler System w/240V Thermostat Control 25 CFM 1/4"NPT1700 BTU/Hr
The Exair NEMA 4X St. Cabinet Cooler System is a reliable and efficient solution for controlling temperatures in enclosures. Suitable for use in various applications such as programmable controllers, control cabinets, and CCTV cameras, this system provides low-cost and compact cooling capacities up to 5600 BTU/hr. Its quiet operation and maintenance-free design make it ideal for environments where downtime is not an option. The system can be installed in minutes, stabilizing enclosure temperature and humidity, and eliminating the need for fans, filters, and CFCs. It also provides washdown protection and is CE compliant.
Top product features:
- The product incorporates a vortex tube to produce cold air from compressed air with no moving parts.
- The compact cabinet cooler can be installed in minutes through a standard electrical knockout.
- The low pressure relief valve closes and seals when the cooler is not operating to maintain the integrity of a NEMA 4 enclosure.
Top product applications:
- Programmable controllers
- Motor control centers
- CCTV cameras
Nema 4x thermostat control systems are the most efficient way to operate a cabinet cooler. They save air by activating the cooler only when internal temperatures approach critical levels. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. The standard thermostat control systems include an adjustable thermostat factory set at 95°f (35°c). Nema 4x (ip66) cabinet coolers are constructed of stainless steel for food service and corrosive environments. Exair® cabinet coolers incorporate a vortex tube to produce cold air from compressed air - with no moving parts. The compact cabinet cooler can be installed in minutes through a standard electrical knockout. Nema 4x (ip66) cabinet cooler® systems (dust-tight oil-tight splash resistant corrosion resistant indoor/outdoor service) incorporate a low pressure relief valve for both the vortex tube and cabinet air exhaust. This valve closes and seals when the cooler is not operating to maintain the integrity of a nema 4 enclosure. They are available in many cooling capacities for large and small control panels. All cabinet coolers are ul listed and ce compliant. Applications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" programmable controllers line control cabinets motor control centers relay panels nc/cnc systems modular control centers cctv cameras computer cabinets cool laser housings electronic scales nema 4 cabinet cooler advantages ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" low cost compact cooling capacities up to 5600 btu/hr. (1641 watts)quiet install in minutes stabilize enclosure temperature and humidity no cfc's no moving parts - maintenance free mount in standard electrical knockout stop nuisance tripping stop heat damage eliminate fans and filters eliminate lost production stop circuit drift stop dirt contamination provide washdown protection
Additional Information
- UNSPSC: 40151601
- Brand: Exair Corporation
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: OH
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 10.50
- Package Width: 10.50
- Package Height: 4.50
- Package Weight: 9.95
Product info last updated on February 24, 2026 10:42pm UTC
Category: Pneumatic System Components
