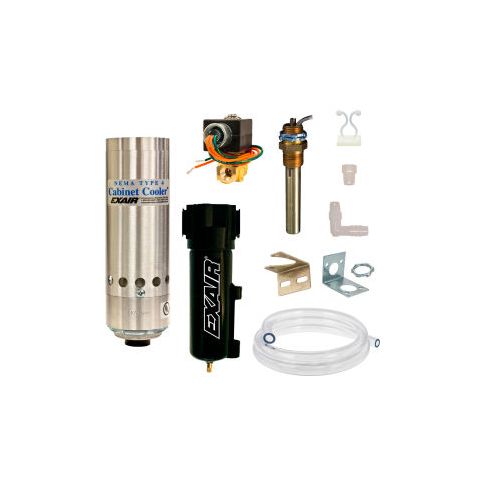

Exair® NEMA 4X St. Cabinet Cooler System w/24VDC Thermostat Control 25 CFM 1700 BTU/Hr 4825SS-24VDC
Exair® NEMA 4X St. Cabinet Cooler System w/24VDC Thermostat Control 25 CFM 1700 BTU/Hr
The Exair NEMA 4X St. Cabinet Cooler System with 24VDC Thermostat Control is a efficient and reliable solution for maintaining optimal temperature and humidity levels in control panels and enclosures. By activating the cooler only when internal temperatures approach critical levels, it saves air and reduces energy consumption. Suitable for use in food service and corrosive environments, this system features a stainless steel construction and incorporates a low pressure relief valve to maintain the integrity of a NEMA 4 enclosure. It is ideal for applications such as programmable controllers, motor control centers, and CCTV cameras, providing a quiet, maintenance-free solution.
Top product features:
- Maintains NEMA 4 integrity (IP66) to provide dust-tight, oil-tight, and splash-resistant protection.
- Provides quiet operation to minimize noise disturbance.
- Eliminates fans and filters, resulting in reduced maintenance and increased reliability.
Top product applications:
- Programmable controllers
- Line control cabinets
- Motor control centers
Nema 4x thermostat control systems are the most efficient way to operate a cabinet cooler. They save air by activating the cooler only when internal temperatures approach critical levels. Thermostat controlled cooler systems are the best option when experiencing fluctuating heat loads caused by environment or seasonal changes. The standard thermostat control systems include an adjustable thermostat factory set at 95°f (35°c). Nema 4x (ip66) cabinet coolers are constructed of stainless steel for food service and corrosive environments. Exair® cabinet coolers incorporate a vortex tube to produce cold air from compressed air - with no moving parts. The compact cabinet cooler can be installed in minutes through a standard electrical knockout. Nema 4x (ip66) cabinet cooler® systems (dust-tight oil-tight splash resistant corrosion resistant indoor/outdoor service) incorporate a low pressure relief valve for both the vortex tube and cabinet air exhaust. This valve closes and seals when the cooler is not operating to maintain the integrity of a nema 4 enclosure. They are available in many cooling capacities for large and small control panels. All cabinet coolers are ul listed and ce compliant. Applications ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" programmable controllers line control cabinets motor control centers relay panels nc/cnc systems modular control centers cctv cameras computer cabinets cool laser housings electronic scales advantages ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" low cost cooling capacities up to 5600 btu/hr. (1641 watts) quiet maintain nema 4 integrity (ip66) stabilize enclosure temperature and humidity no cfc's no moving parts - maintenance free mount in standard electrical knockout stop nuisance tripping stop heat damage eliminate fans and filters eliminate lost production stop circuit drift stop dirt contamination provide washdown protection cabinet coole
Additional Information
- UNSPSC: 40151601
- Brand: Exair Corporation
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: OH
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 10.50
- Package Width: 10.50
- Package Height: 4.50
- Package Weight: 9.95
Product info last updated on February 23, 2026 7:08pm UTC
Category: Pneumatic System Components
