7/8" Fixed Bore 2 Groove Variable Pitch Pulley 3.25" OD MPN:110290
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1663654

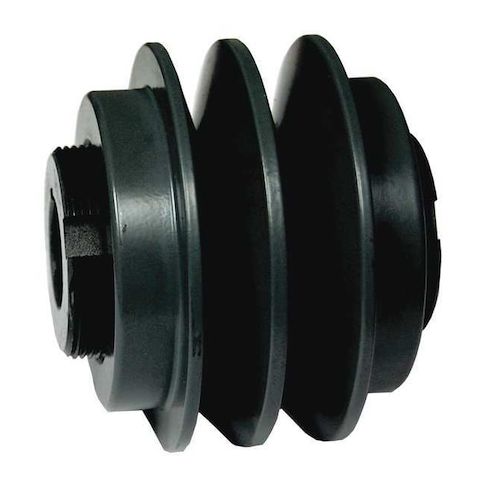

7/8" Fixed Bore 2 Groove Variable Pitch Pulley 3.25" OD
This 7/8in Fixed Bore 2 Groove Variable Pitch Pulley from Essick Air is designed for use with V-Belts of various types, including Wedge, Cogged, and Banded. Its variable pitch design allows for optimal belt tension and performance. The pulley is made of durable cast iron and features a 2-groove design for efficient power transmission. Suitable for applications such as industrial machinery, HVAC systems, and conveyor belts, this pulley offers reliable and long-lasting performance. Its compact 3.25in OD and adjustable pitch make it a versatile solution for a range of applications, ensuring smooth and efficient operation.
Top product features:
- Fixed Bore design allows for secure mounting of the pulley to a shaft
- Variable Pitch design enables the pulley to accommodate different belt tensions and loads
- Two grooves provide a secure and stable path for the V-belt to ride on
Top product applications:
- Power transmission in industrial machinery
- Conveyor belt systems
- Air conditioning and HVAC systems
Variable Pitch V-Belt Pulley, Bore Diameter 7/8 in, Standards ISO 9001: 2008, For Belt Trade Size 3L, 4L, A, AX, For V-Belt Type Wedge, Cogged, Banded, Material Cast Iron, Maximum Pitch Diameter 3.00 in (3L), 3.4 in (4L, A, AX), Number of Grooves 2, Outside Diameter 3.25 in, Set Screw Location 180 Degrees from Keyway, 90 Degrees from Keyway, 3L Pitch Diameter (Maximum) 3 in, 3L Pitch Diameter (Minimum) 2.2 in, 4L Pitch Diameter (Maximum) 3.4 in, 4L Pitch Diameter (Minimum) 2.8 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 3.50
- Package Height: 3.50
- Package Weight: 2.95
Product info last updated on March 26, 2026 7:30pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
