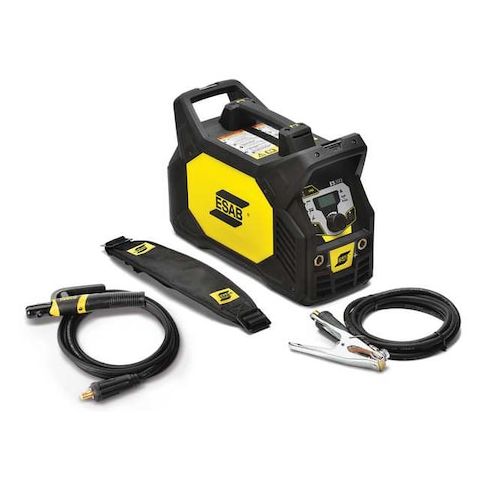

TIG Welder, Renegade ES 300i, 5 to 300 A, DC, Single-/Three-Phase, Power Source Only MPN:0445100881
The Renegade ES 300i Series TIG Welder is a versatile and powerful tool for professionals and serious hobbyists. Ideal for welding mild steel, stainless steel, and aluminum, this 300A TIG welder can handle materials up to 3/8 inch thick. Its DC polarity and single/three-phase capabilities make it suitable for a wide range of applications, from construction and fabrication to automotive and aerospace repair. With its high output current and precision control, this welder delivers consistent, high-quality results. Perfect for precision welding, metal fabrication, and repair, the Renegade ES 300i Series is a reliable and efficient choice for any welding project.
Top product features:
- TIG welding capability for mild steel, stainless steel, and aluminum materials
- Operates at maximum output current of 300 A for stick welding
- Dual voltage capability for 208V AC and 460V AC operation
Top product applications:
- Mild Steel Fabrication
- Stainless Steel Fabrication
- Aluminum Fabrication
The ESAB Renegade ES 300i (model 445100881) is a TIG welder power source that supports TIG (GTAW) and Stick (SMAW) welding in CC mode with DC polarity. It delivers 5–300 A output, a rated output of 300 A @ 32 V (60%), and operates on 208V AC or 460V AC input with single- or three-phase capability.
Key Features:
- - Item: TIG Welder, Series Renegade ES 300i, Model 445100881
- - Welding processes: TIG (GTAW) and Stick (SMAW)
- - Amperage range: 5 to 300 A
- welder min/max output amps 5–300 A
- - Rated output and duty: 300 A @ 32 V, 60%
- overall welder duty cycle listed as 40%
- - TIG output @ duty cycle: 200 A @ 18 V (100%), 250 A @ 20 V (60%), 300 A @ 22 V (40%)
- - Stick output @ duty cycle: 200 A @ 28 V (100%), 250 A @ 30 V (60%), 300 A @ 32 V (40%)
- - Input voltage/frequency/phase: 208V AC, 460V AC
- 50/60 Hz
- single- or three-phase
- - Max input current: 200 A at 230–460 VAC (1φ)
- 300 A at 230–460 VAC (3φ)
- - Polarity and welding mode: DC polarity, CC (constant current) mode
- - Materials and thickness: Aluminum 0.012 in to 3/8 in
- Mild Steel 0.004 in to 3/8 in
- For material type: Mild Steel, Stainless Steel
- - Physical: weight 33 lb
- overall dimensions 7.91 in W x 18.5 in D x 12.61 in H
- color Yellow
- - Power and connections: power cord included (10 ft)
- plug type bare leads
- power source only (remote control not included)
- - Features: Digital readout display, integrated latch system, intuitive interface, rugged case, small form factor, three-handle design
- - Standards and classification: CSA, CE
- industrial class Medium
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.10
- Package Width: 10.60
- Package Height: 17.50
- Package Weight: 40.50
